OSN8800 T16 T32 T64 DWDM WDM OTN Transmission Huawei OSN 8800

Name: OSN8800 T16 T32 T64 DWDM WDM OTN Transmission Huawei OSN 8800
Brand: Huawei
SKU: OSN 8800
Availability: InStock
ISBN: 13955735

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	OSN 8800

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

OSN8800 T16 Dimensions:	498 X 295 X 450(mm)	OSN8800 T32 Dimensions:	498 X 295 X 900(mm)
OSN8800 T64 Dimensions:	498 X 580 X 900(mm)	OSN8800 T16 Service Slots:	16
OSN8800 T32 Service Slots:	32	OSN8800 T64 Service Slots:	64
Optical Switch:	1 To 9-degree ROADM	DWDM Wavelength:	80-ch
CWDM Wavelength:	8-ch	Max. Rate Per Channel:	100Gbit/s (OTU4)

Certifications

Hong Telecom Equipment Service LTD (HongTelecom) is formal distributor of Huawei, ZTE and Emerson. Our team come from Huawei, ZTE, Emerson, CISCO, Alcatel, Ericsson, Fiberhome mostly. So we have established very good cooperative relationship with Huawei, Ericsson, Nokia, NSN, ZTE, Vertiv, Emerson, Fiberhome, Cisco, Juniper, HPE, DELL, Alcatel-Lucent, Nortel, H3C. We can provide one-stop purchasing platform for our customer with very good price and very fast delivery.

Our Company

Hong Telecom Equipment Service LTD (HongTelecom) is a leading professional equipment distributor and service provider in telecommunication infrastructure and solution field, and now is extending our business to ICT (Information and Communication Technology) field.

HongTelecom offer full range of telecom infrastructure products, our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION(SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Huawei/Ericsson/ NSN/Alcatel/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.

Product Introduction

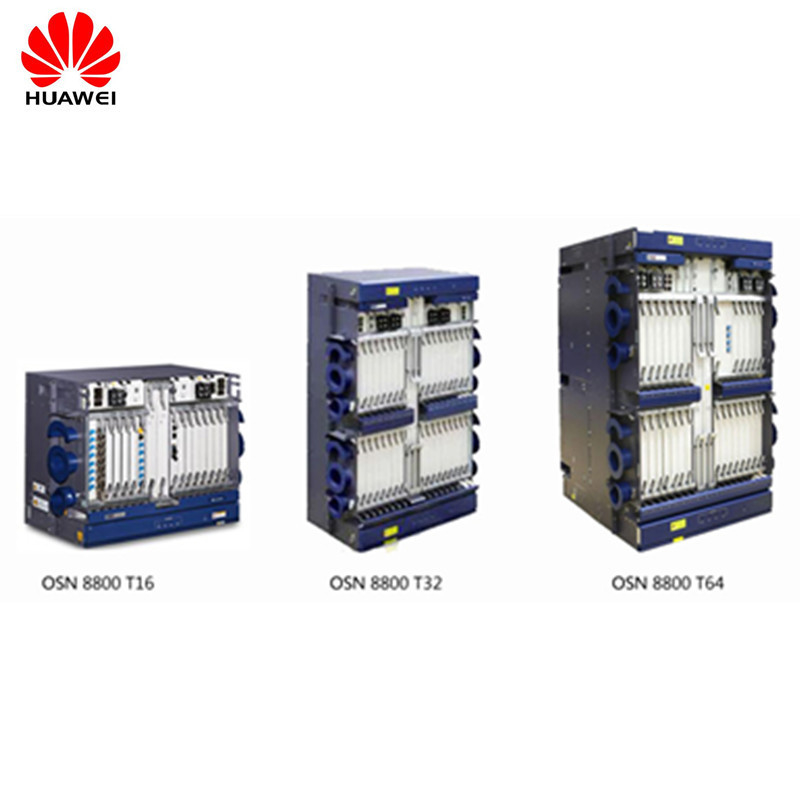

Product Appearance

The huawei Optix OSN 8800

Product features

The OptiX OSN 8800 is mainly deployed on national backbone networks, regional/provincial backbone networks, and metro networks. In addition to large-capacity OTN grooming features, the OptiX OSN 8800 integrates the following:

* ROADM
* Terabit-bit electrical cross-connection
* Full-granularity grooming ranging from 100 Mbit/s to 100 Gbit/s
* Optical-electrical ASON synergy
* 40G/100G transmission capability
* Various management and protection functions

The OptiX OSN 8800 is recognized as the platform with the highest integration in the industry. One OptiX OSN 8800 subrack supports access of 320/640 x 10G or 32/64 x 100G services. The OptiX OSN 8800 can accommodate mass IP services and provide centralized grooming and unified management. Because one OptiX OSN 8800 subrack is equivalent to multiple subracks of other WDM devices, the OptiX OSN 8800 saves 80% of the equipment footprint and reduces power consumption per bandwidth unit by 55%. OptiX OSN 8800 devices can be directly connected, rather than being connected through ODFs, and therefore are highly reliable.

The OptiX OSN 8800 enables congestion-free 3.2T/6.4T-bit electrical cross-connections, supports complex network topologies, and provides centralized grooming of numerous services. It provides optical and electrical cross-connections and supports optical cross-connections in 2, 4, 9, or 20 degrees using ROADMs. In this way, it supports flexible wavelength-level and subwavelength-level grooming and quick service deployment and reduces CAPEX. In addition, the OptiX OSN 8800 creates the industry's first simply-structured colorless, directionless, contentionless, and gridless (CDCG) ROADM and simplifies node configurations for optical-layer ASON.

The mature commercial 96 x 100G system supports transmission with unlimited bandwidth. The system provides both OCh-layer ASON and ODUk-layer ASON, a new optical-electrical ASON synergy mode pioneered in the industry by Huawei, featuring high reliability.

The OptiX OSN 8800 has MS-OTN features cross-connections of OTN/SDH/packet services on centralized cross-connect boards and the flexible transmission of OTN, SDH, and packet services to improve board utilization.

The OptiX OSN 8800 supports submarine cable transmission. Huawei's industry-leading 100G submarine cable solution supports 12,000 km transmission without electrical regeneration.

The OptiX OSN 8800 supports transmission of 2M, IEEE 1588v2, and synchronous Ethernet clocks to fully satisfy the clock precision requirements of 3G, 4G, and future 5G networks.

The OptiX OSN 8800 monitors the OSNR, optical power, and BER of any channel on 10G/40G/100G networks and supports real-time online monitoring of optical parameters, to improve network O&M efficiency.

The OptiX OSN 8800 supports the online OTDR function by an OSC board, which measures fiber parameters and rapidly locates fault points and deterioration points on a fiber.

The OptiX OSN 8800 supports smooth evolution to TSDN, which improves service provisioning efficiency, simplifies network O&M, and makes networks more intelligent. Based on TSDN architecture, the OptiX OSN 8800 supports various apps and innovative services and implements intelligent network management and the unified grooming of cross-layer and cross-domain network resources.

Product Specification

The Huawei OptiX OSN 6800 Specifications:

Specifications		OptiX OSN 8800 T16	OptiX OSN 8800 T32	OptiX OSN 8800 T64
Dimensions (WxDxH)		498 x 295 x 450 (mm)	498 x 295 x 900 (mm)	498 x 580 x 900 (mm)
Number of slots for service boards		16	32	64
Switch	Optical	1 to 9-degree ROADM
	Electrical	1.6T ODUk(k=0, 1, 2, 2e, 3, 4, flex) 640G VC-4 and 20G VC-3/VC-12 800G Packet	Enhanced subrack: 3.2T ODUk(k=0, 1, 2, 2e, 3, 4, flex) 1.28T VC-4 and 80G VC-3/VC-12 1.6T Packet General subrack: 1.28T ODUk(k=0, 1, 2, 2e, 3, flex) 1.28T VC-4 and 80G VC-3/VC-12	Enhanced subrack: 6.4T ODUk(k=0, 1, 2, 2e, 3, 4, flex) 1.28T VC-4 and 80G VC-3/VC-12 General subrack: 2.56T ODUk(k=0, 1, 2, 2e, 3, flex) 1.28T VC-4 and 80G VC-3/VC-12
Wavelength (max)		DWDM: 80-ch, CWDM: 8-ch
Wavelength range		DWDM: 1529.16 nm to 1560.61 nm (Band-C, ITU-T G.694.1) CWDM: 1471 nm to 1611 nm (Band S+C+L, ITU-T G.694.2)
Max. rate per channel		100Gbit/s (OTU4)
Max. distance		Multi-span transmission (without electrical regeneration): 32 span x 22 dB/span (10G), 25 span x 22 dB/span (40G), 20 span x 22 dB/span (100G) Ultra-long single-span transmission: 1 span x 81 dB/span (10G), 1 span x 71 dB/span (40G)
Service types supported		SDH, SONET, Ethernet, SAN, OTN, Video
Line rate		2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 100 Gbit/s
Max. capacity per PID group		200 Gbit/s
Topology		Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring and mesh
Redundancy and Protection	Redundancy and Protection	Optical line protection, intra-board 1+1 protection, client 1+1 protection, ODUk SNCP, tributary SNCP, SW SNCP, ODUk SPRing protection, OWSP
	Network level protection (OCS)	Linear MSP, MSP ring, transoceanic MSP ring, SNCP, SNCTP
	Network level protection (Ethernet and packet)	DBPS, DLAG, ERPS, LAG, LPT, MC-LAG, MSTP, PW APS, STP and RSTP, Tunnel APS, VLAN SNCP	DBPS, DLAG, ERPS, LAG, LPT, MC-LAG, MSTP, PW APS, STP and RSTP, Tunnel APS, VLAN SNCP	DBPS, DLAG, ERPS, LAG, LPT, MC-LAG, MSTP, STP and RSTP, VLAN SNCP
	Equipment level protection	Power redundancy, fan redundancy, cross-connect board redundancy, system control and communication board redundancy, centralized clock board redundancy, AUX Board 1+1 Redundancy
Optical power management		ALS, AGC, ALC, APE, IPA, OPA
Synchronization		Synchronous Ethernet clock IEEE 1588v2 2 Mbit/s or 2 MHz (with the SSM function), ITU-T G.703-compliant external clock source External time source (1PPS+TOD)
ASON		An OTN network supports the Optical-Layer ASON and electrical-Layer ASON. An OCS network supports the SDH ASON feature.
Operation Environment		Subrack temperature: Long-term operation: 5°C (41 °F) to 45°C (113 °F) Short-term operation: -5°C (23 °F) to 55°C (131 °F) Relative humidity: Long-term operation: 5% to 85% Short-term operation: 5% to 90%
