OptiXtrans E9600 DWDM Huawei Telecom Equipment OptiXtrans E9605

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	OptiXtrans E9605

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

OptiXtrans E9605 Dimensions:	177 (H) X 442 (W) X 295 (D)	Max. Rate Per Channel:	400G Bit/s (OTUC4)
Max. Number Of Slots For Service Boards:	5	Suitable Cabinet:	ETSI 300/600 Cabinets, Such As A63B * 19-inch Cabinet
Fixed Grid::	96 Wavelengths	Name:	Huawei DWDM
Highlight:	E9600 DWDM Huawei Telecom Equipment , Huawei Telecom Equipment OptiXtrans E9605 , OptiXtrans E9600 Huawei DWDM

Product Introduction

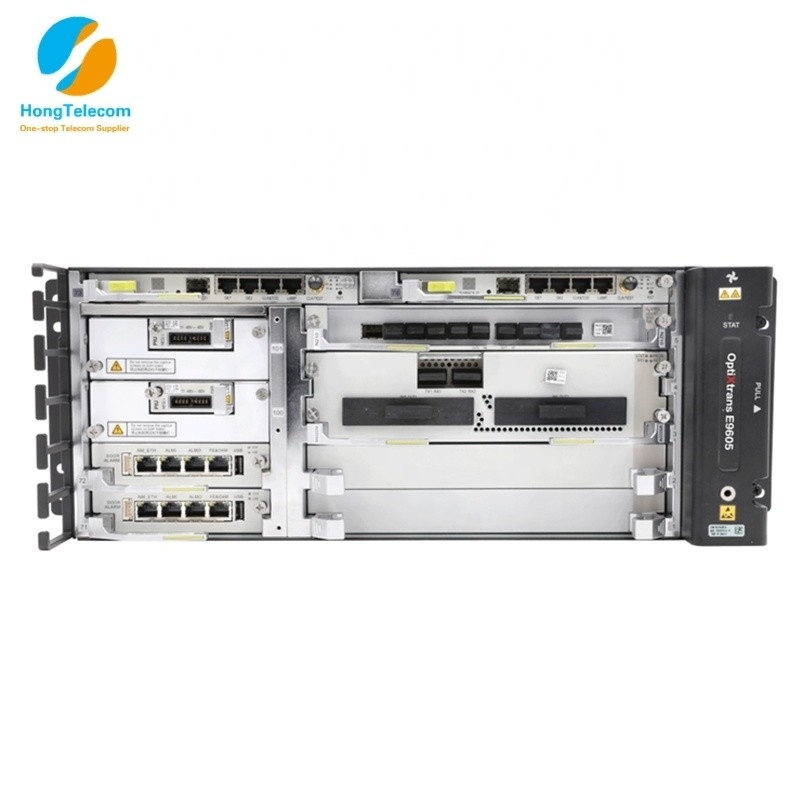

Product Appearance

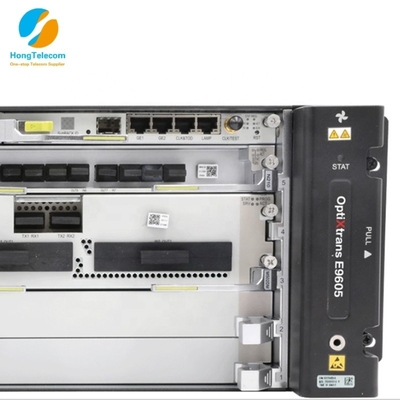

The huawei OptiXtrans E9605

Product Specifications

Subrack dimensions (mm)	177 (H) x 442 (W) x 295 (D)
Suitable cabinet	* ETSI 300/600 cabinets, such as A63B * 19-inch cabinet
Max. number of slots for service boards	5
Max. number of wavelengths	* Fixed grid: 96 wavelengths @50 GHz grid * Flex grid: The maximum number of wavelengths is related to the width of the flex channel.
Wavelength range	DWDM system: 1524.50 nm to 1572.06 nm (super C-band) CWDM system: 1471 nm to 1611 nm (S+C+L Band)
Max. rate per channel	400G bit/s (OTUC4)
Service type	Synchronous digital hierarchy (SDH)/synchronous optical network (SONET), Ethernet, SAN, OTN, Video
