Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |

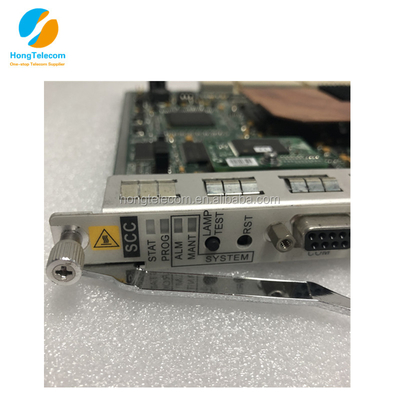

| Model Number: | RTN620, SL61SCC |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

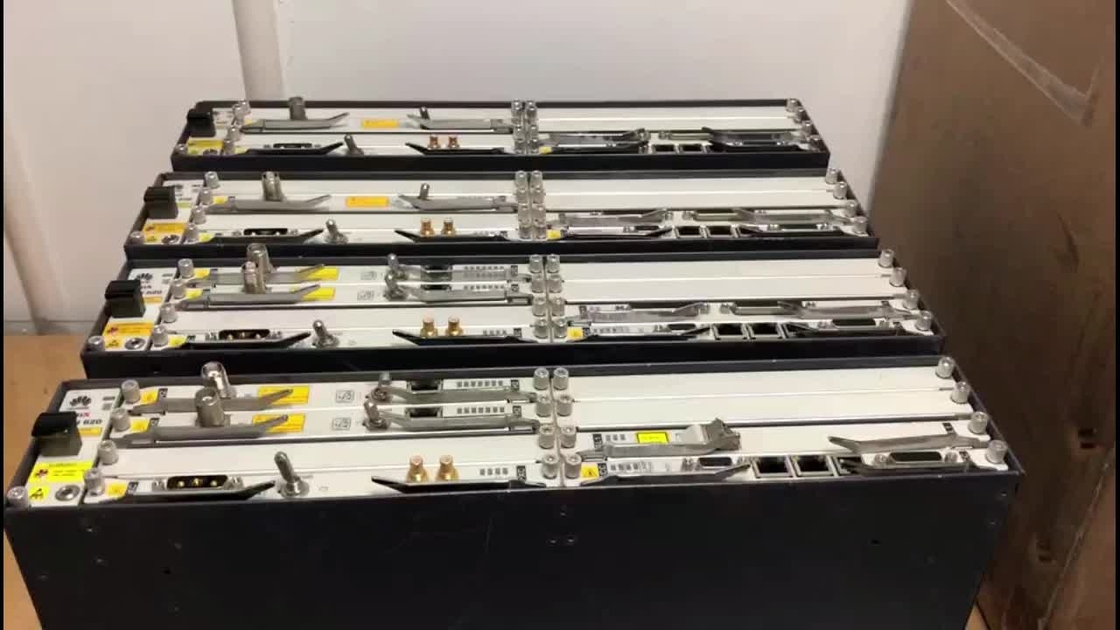

| RTN620: | 2U Rack |
|---|
Network Application
The OptiX RTN 600 radio transmission system is a short haul digital microwave transmission system developed by Huawei Technologies Co., Ltd.
Each radio frequency (RF) carrier of the RTN 600 system can transmit 4/8/16xE1 or 1xSTM-1.
The RTN 600 can provide back haul links in a private network or a mobile telecommunication network, and can also network with optical transmission systems.
Components
The OptiX RTN 600 adopts a split structure. The system consists of the indoor unit (IDU) and the outdoor unit (ODU). An ODU is connected to an IDU through a coaxial cable.
The IDU has two types as follows:
1. IDU 610: 1U; one IF board; supporting 1+0 non-protection configuration.
2. IDU 620: 2U; one to four IF boards; supporting 1+0 non-protection configuration and 1+1 configuration.
Interface Type | Specifications | IDU 610 | IDU 620 |
PDH interface | 75/120-ohm E1 interface | 16 | 64 |
SDH interface | STM-1 optical interface: Ie-1, S-1.1, L-1.1, L-1.2 | 2a | 8b |
STM-1 optical interface: Ie-1, S-1.1, L-1.1, L-1.2 | 2a | 8b | |
Ethernet service interface | 10M/100M BASE-T(x) interface | 4 | 16 |
External clock interface | 75-ohm 2048 kHz/ or 2048 kbit/s external clock interface | 1 | 2 |
Auxiliary interface | Orderwire interface | 1 | 1 |
Wayside (WS) interface (the external clock interface) | 1 | 2 | |
RS232 asynchronous data interface | 1 | 1 | |
Management interface | 10/100BASE-T(x) NM interface | 1 | 1 |
10/100BASE-T(x) NE cascade interface | 1 | 1 | |
Management serial port | 1 | 1 | |
Alarm interface | Alarm input/out interface | 6 inputs + 2 outputs | 6 inputs + 2 outputs |
2.1 Advanced Physical Structure
The IDU is independent of frequency.
The ODU is independent of capacity.
The interfaces between the IDU and the ODU, or the interfaces between the ODU and the antenna, are independent of their respective types.
The system adopts a uniform SDH and PDH transmission platform. The system can transmit PDH or SDH services.
The IDU adopts the design of the ADM, which makes it groom services fast.
The IDU adopts the design of plug-in boards. The two types of IDUs can share boards.
2.2 High Integration
IDU 610 dimensions: 442 mm x 44 mm x 215 mm (width x height x depth) two-layer structure
IDU 620 dimensions: 442 mm x 87 mm x 215 mm (width x height x depth) four-layer structure
ODU dimensions: < 260 mm x 260 mm x 92 mm (width x height x depth)
The power unit, cross-connect unit, and clock unit are all integrated into one board.
The control unit, auxiliary interface unit, and standby power unit are all integrated into one board.
