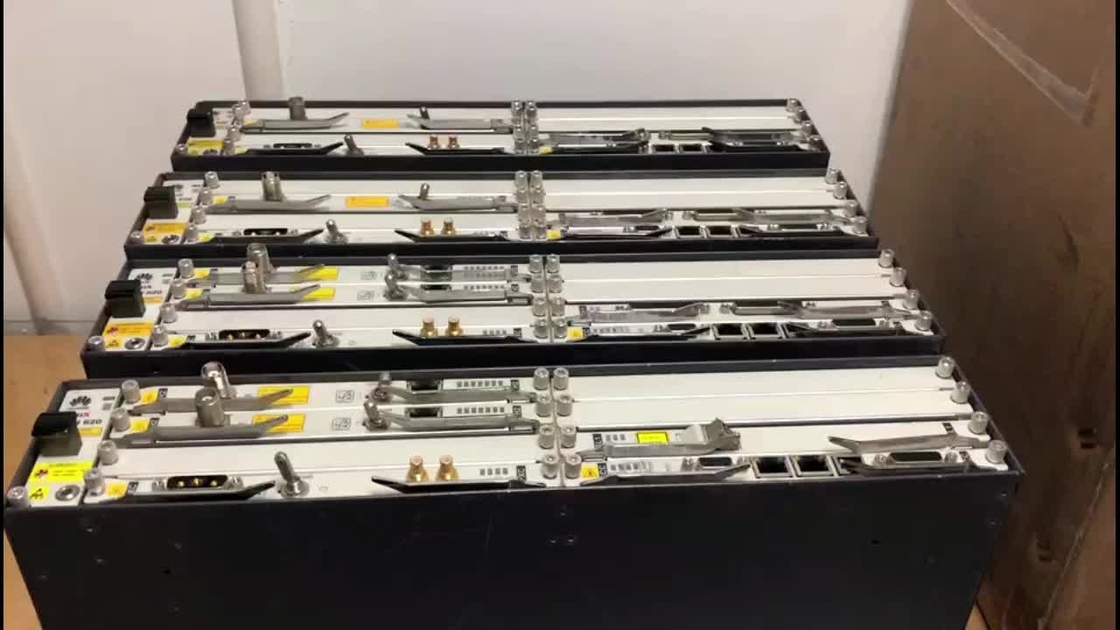

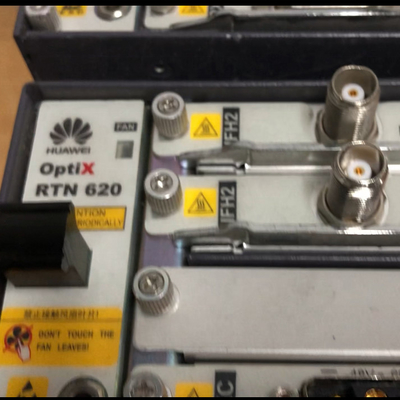

Microwave RTN 620 IDU RTN620

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	RTN620

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

RTN620:	2U Rack

Product Description

Network Application

The OptiX RTN 600 radio transmission system is a short haul digital microwave transmission system developed by Huawei Technologies Co., Ltd.
Each radio frequency (RF) carrier of the RTN 600 system can transmit 4/8/16xE1 or 1xSTM-1.
The RTN 600 can provide back haul links in a private network or a mobile telecommunication network, and can also network with optical transmission systems.

Components

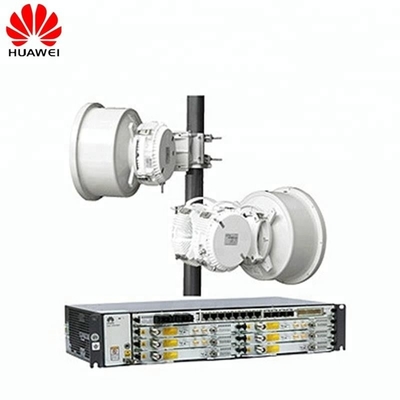

The OptiX RTN 600 adopts a split structure. The system consists of the indoor unit (IDU) and the outdoor unit (ODU). An ODU is connected to an IDU through a coaxial cable.

The IDU has two types as follows:
1. IDU 610: 1U; one IF board; supporting 1+0 non-protection configuration.
2. IDU 620: 2U; one to four IF boards; supporting 1+0 non-protection configuration and 1+1 configuration.

Interface Type	Specifications	IDU 610	IDU 620
PDH interface	75/120-ohm E1 interface	16	64
SDH interface	STM-1 optical interface: Ie-1, S-1.1, L-1.1, L-1.2	2^a	8^b
SDH interface		STM-1 optical interface: Ie-1, S-1.1, L-1.1, L-1.2	2^a	8^b
Ethernet service interface	10M/100M BASE-T(x) interface	4	16
External clock interface	75-ohm 2048 kHz/ or 2048 kbit/s external clock interface	1	2
Auxiliary interface	Orderwire interface	1	1
		Wayside (WS) interface (the external clock interface)	1	2
		RS232 asynchronous data interface	1	1
Management interface	10/100BASE-T(x) NM interface	1	1
		10/100BASE-T(x) NE cascade interface	1	1
		Management serial port	1	1
Alarm interface	Alarm input/out interface	6 inputs + 2 outputs	6 inputs + 2 outputs
