Huawei RTN910A Radio Transmission System OptiX RTN 910A

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	RTN 910A

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

RTN 910A IDU:	1U Chassis	RF Configuration Mode 1:	N+0 Non-protection Configuration
RF Configuration Mode 2:	Nx(1+0) Non-protection Configuration	RF Configuration Mode 3:	1+1 Protection Configuration
RF Configuration Mode 4:	N+1 Protection Configuration	RF Configuration Mode 5:	XPIC Configuration

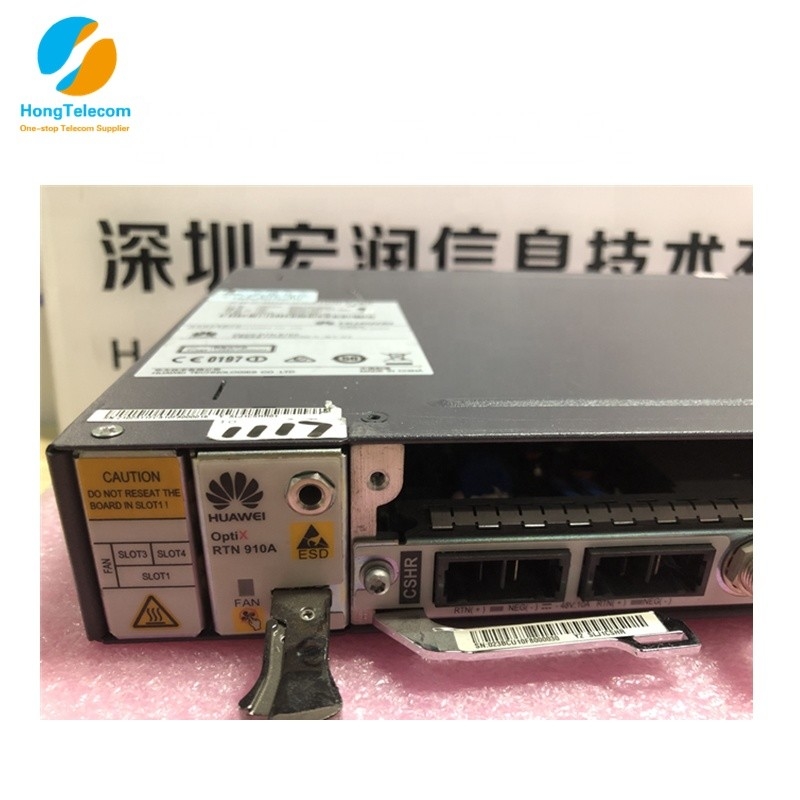

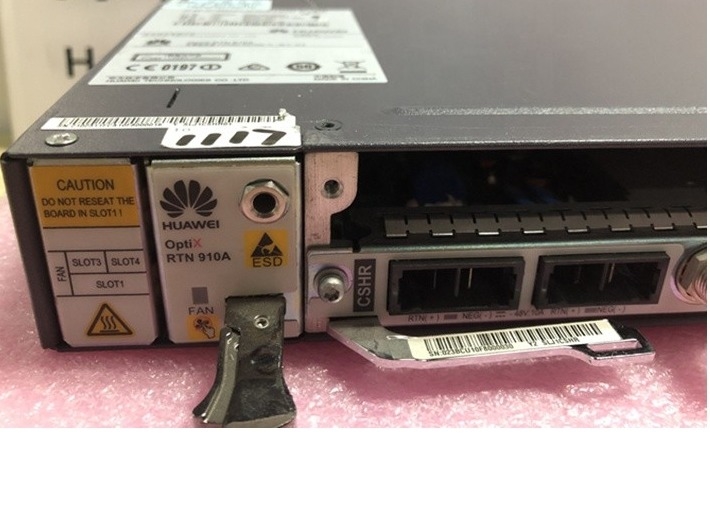

Radio Directions:	6	Pluggable:	Supported (CSHR Boards Are Not Pluggable.)

Product Overview

Huawei RTN910A Radio Transmission System OptiX RTN 910A

The OptiX RTN 910A provides a generic platform for TDM/Hybrid/Packet/Routing microwave transmission, meeting the backhaul requirements of various mobile networks. The OptiX RTN 910A is highly integrated microwave equipment, with one 1 U chassis supporting a maximum of six microwave links. The OptiX RTN 910A is mainly used at the access and aggregation layers.

The OptiX RTN 910A can provide a route microwave solution for LTE bearer networks. In this solution, the OptiX RTN 910A functions as a CSG and works with routers that function as ASGs and RSGs to provide end-to-end L3VPN services. The routers can be Huawei CX600s or other routersThe OptiX RTN 910A adopts a split structure. The system consists of the IDU 910A and the ODU. Each ODU is connected to the IDU 910A through an IF cable.

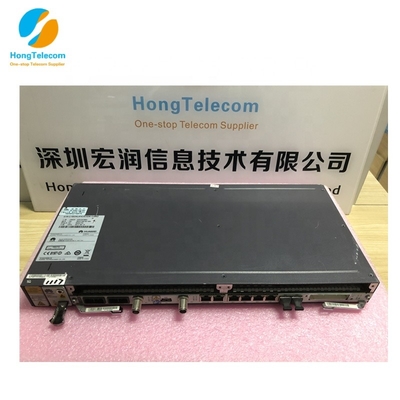

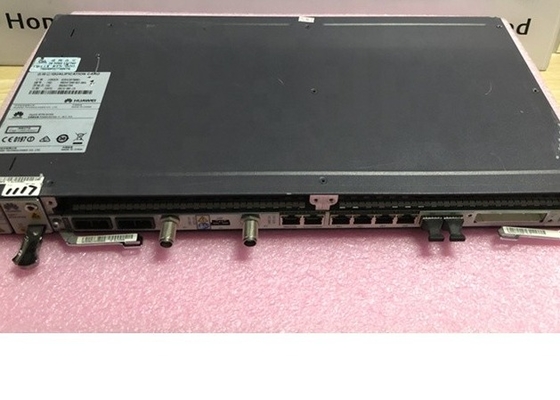

IDU 910A
The IDU 910A is the indoor unit for an OptiX RTN 910A system. It receives and multiplexes services, performs service processing and IF processing, and provides the system control and communications function.

IDU 910A Item	Description
Chassis height	1U
Pluggable	Supported (CSHR boards are not pluggable.)
The maximum number of radio directions	6
RF configuration mode	N+0 non-protection configuration Nx(1+0) non-protection configuration 1+1 protection configuration N+1 protection configuration XPIC configuration
Service interface type	Native E1 interface Smart E1 interface STM-1 optical/electrical interface FE optical/electrical interface GE optical/electrical interface 2.5GE optical interface

ODU
The ODU is the outdoor unit for the OptiX RTN 900. It converts frequencies and amplifies signals.
The OptiX RTN 900 product series can use the RTN 600 ODU and RTN XMC ODU, covering the entire frequency band from 6 GHz to 42 GHz.

RTN XMC ODUs that the OptiX RTN 910A supports

ODU type	Frequency band	Highest-order Modulation	Channel spacing
XMC-2	6/7/8/10/10.5/11/13/15/18/23/26/28/32/38/42 GHz	2048QAM (13/15/18/23/38 GHz, 7/8 GHz XMC-2E) 1024QAM (6/10/10.5/11/26/28/32/42 GHz) 256QAM (7/8 GHz Normal)	3.5/7/14/28/40/50/56 MHz
XMC-2H	6/7/8/11 GHz	2048QAM	7/14/28/40/56 MHz
XMC-3	7/8/11/13/15/18/23/26/28/32/38 GHz	4096QAM (7/8/11/13/15/18/23/26 GHz) 2048QAM (28/32/38 GHz)	3.5/7/14/28/40/56 MHz (7/8/11/13/15/18/23/26/28/38 GHz) 3.5/7/14/28/40/56/112 MHz (32 GHz)
XMC-3W	7/8/13/18/15/23 GHz	4096QAM	3.5/7/14/28/40/56 MHz
XMC-3H	15/18/23/28/38 GHz	8192QAM (28/40/56 MHz) 4096QAM (112 MHz) 2048QAM (14 MHz) 1024QAM (7 MHz)	3.5/7/14/28/40/56/112 MHz
XMC-5D	13/15/18 GHz	4096QAM (28/40/56/112 MHz) 2048QAM (7/14 MHz)	7/14/28/40/56/112 MHz

RTN 600 ODUs that the OptiX RTN 910A supports

Item	High-Power ODU	Standard Power ODU
ODU type	HP, HPA	SP, SPA
Frequency band	6/7/8/10/10.5/11/13/15/18/23/26/28/32/38 GHz (HP) 6/7/8/11/13/15/18/23 GHz (HPA)	7/8/11/13/15/18/23/26/38 GHz (SP ODU) 6/7/8/11/13/15/18/23 GHz (SPA ODU)
Highest-order Modulation	256QAM	256QAM
Channel spacing	7/14/28/40/56 MHz (6/7/8/10/11/13/15/18/23/26/28/32/38 GHz) 7/14/28 MHz (10.5 GHz)	3.5/7/14/28 MHz
