Huawei OTN DWDM OSN 8800 T32 Optical transmission equipment Huawei OSN8800

OptiX OSN 8800 is mainly used in national trunk lines, regional / provincial trunk lines and metropolitan area networks. It integrates the functions of ROADM, T-bit electrical cross, 100M-100G full-grain scheduling, , 40G / 100G transmission, rich management and protection functions, for operators to build end-to-end OTN / WDM backbone transmission solutions to achieve large-capacity scheduling and ultra-wideband intelligent transmission.

The OptiX OSN 8800 T64 / T32 / T16 can be configured as a complete OTN end-to-end network. It can also be used with the OptiX BWS 1600G, OptiX OSN 1800, OptiX OSN 9800, and with NG-SDH / PTN or Datacom Equipment, mixed network, to achieve a complete transmission solution.

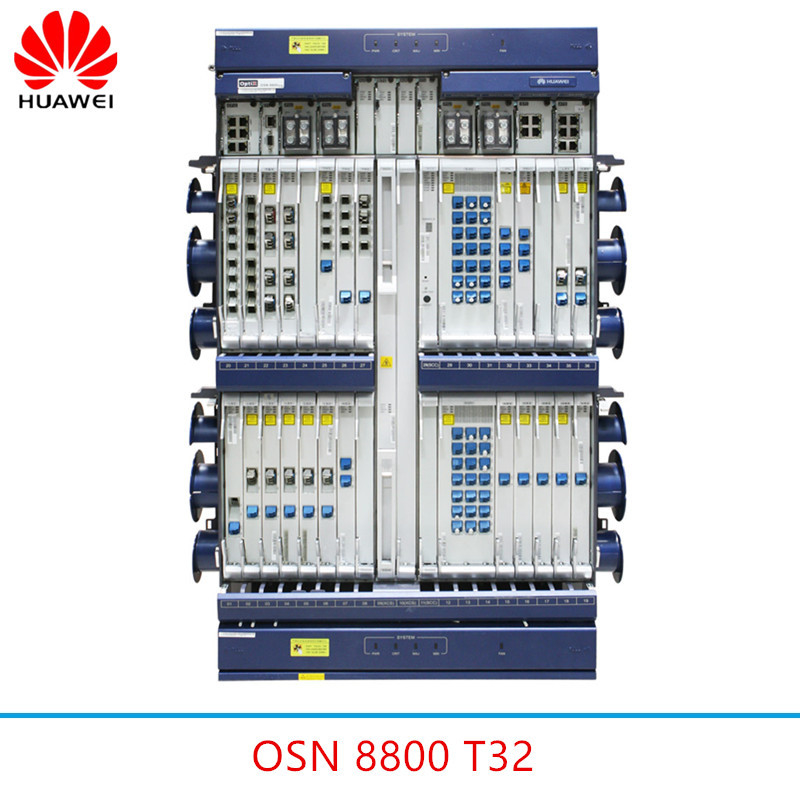

HUAWEI OSN 8800 T32

HUAWEI OSN 8800 series

1. Support the mass IP service access, centralized scheduling and management, eliminating the previous multi-sub-assembly of the network; save 80 / 100G or 32/64 * 100G; % Of the footprint, 55% reduction in power per unit bandwidth, eliminating the ODF fiber switch, high reliability.

2. 3.2T / 6.4T-bit non-blocking electrical cross-connect capacity to support complex networking, mass business centralized scheduling; support 2/4/9/20-dimensional ROADM optical cross-linking; support optical hybrid cross, flexible wavelength / sub-wavelength level Business cross-scheduling, rapid business deployment, lower CAPEX. The CDC ROADM (Colorless & Directionless & Gridless ROADM), the industry's first compact architecture, simplifies the configuration of optical ASON nodes.

3. Mature commercial 80 * 100G system, unlimited bandwidth transmission; the industry's only OCH & ODUk photoelectric double intelligent, photoelectric linkage of the new model, with higher reliability.

4. MS-OTN features, centralized cross-board unified support for OTN / SDH / PKT cross; OTN, SDH and PKT business flexible combination to enhance the board and bandwidth efficiency.

5. Support submarine cable transmission, the leading 100G submarine cable program, support 100G without electricity relay 7000 km transmission.

6. Provide 2M, 1588 V2 and synchronous Ethernet clock transmission, fully meet the WCDMA, TD-SCDMA, CDMA2000 and LTE / LTE-A clock accuracy requirements.

7. Support 10G / 40G / 100G arbitrary channel OSNR optical power / BER monitoring, real-time optical parameters on-line monitoring, enhance network operation and maintenance efficiency.

8. Integrated OTDR function, through the monitoring board for online OTDR detection of fiber parameters, quickly locate the fiber failure point, locate the fiber degradation point.

9. Support the evolution of T-SDN, enhance service delivery efficiency, simplify network operation and maintenance, and enhance network intelligence. At the same time can also be achieved through the T-SDN cross-layer cross-domain network resources, unified scheduling and network intelligent management, and can support a wealth of APP applications and business innovation.

Hong Telecom Equipment Service Limited, formal distributor of Huawei, ZTE, Cisco, Fiberhome, H3C,Ericsson, Alcatel Lucent and Emerson, we provide complete series of Huawei,ZTE and Emerson.

Comparing with Huawei & ZTE & Cisco & Fiberhome & H3C & Ericsson &  Alcatel Lucent & Emerson, we can provide Plenty of Stock, Fast Delivery, Better price, and original guarantee.
