| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OptiXtrans DC908 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Model: | OptiXtrans DC908 | OptiXtrans DC908 Dimensions: | 86.1 X 442 X 500 Mm |
|---|---|---|---|
| Chassis: | 2 U | Number Of C-band Wavelengths: | 120 |
| Integration (T/U): | 4.8 Tbit/s | Chassis Capacity: | 9.6 Tbit/s |
| Max. Line Rate Per Wavelength: | 600-800 Gbit/s |

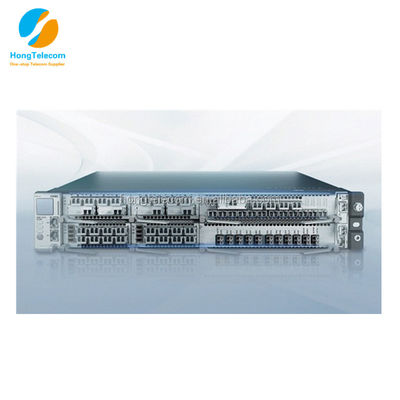

An optical-electrical Wavelength Division Multiplexing (WDM) transmission device designed for Data Center Interconnect (DCI) and ready for the toughest challenges of the intelligent era.
OptiXtrans DC908 features:
Simplified deployment, from scratch to completion in just eight minutes;
Ultra-broadband and high integration, with 48T per fiber (sufficient for the next five years);
Intelligent, proactive Operations and Maintenance (O&M) that’s AI ready.
Parameter | Huawei OptiXtrans DC908 Description | ||
Chassis | Dimensions (H x W x D) | 86.1 mm x 442 mm x 500 mm | |
Maximum Capacity | 9.6 Tbit/s | ||
Number of Service Board Slots | 8 | ||
Applicable Cabinet | 19-inch cabinet | ||
Line-Side Port | Rate (Programmable) | • 100 Gbit/s (PDM_QPSK, PDM_wDCM_QPSK) | |
• 200 Gbit/s (PDM_16QAM, PDM_16QAM-H, PDM_e16QAM, PDM_QPSK) | |||
• 400 Gbit/s (PDM_16QAM) | |||
• 600 Gbit/s (PDM_64QAM) | |||
• 800 Gbit/s (PDM_64QAM) | |||
Optical Module | • Wavelength-tunable optical module MSA | ||
• Wavelength-tunable and pluggable CFP2 | |||
Client-Side Port | Access Service Type | 10 GE LAN, 10 GE WAN, 40 GE, 100 GE, 400 GE, OTU4, OTU2, OTU2e, STM-64, FC800, FC1200, FC1600, and FC3200 | |
Optical Module | • Pluggable SFP+ | ||
• Pluggable QSFP28, QSFP+, and QSFP-DD | |||
Optical Power Management | ALS, AGC, eALC, APE, and IPA | ||
Maximum Number of Wavelengths | Fixed grid: 120 wavelengths @ 50 GHz | ||
Channel Spacing | Fixed grid: 50 GHz, 75 GHz, 100 GHz, 150 GHz | ||
Center Frequency Range | 190.7 THz to 196.65 THz | ||
Center Wavelength Range | 1524.50 nm to 1572.06 nm | ||
Protection | • Optical line protection | ||
• Intra-board 1 + 1 protection | |||
• Client 1 + 1 protection | |||
Management Interface | CLI, GUI, SNMP, NCE-T, and NETCONF | ||
Encryption Algorithm | AES-256 | ||
O&M Features | • Intuitive one-click deployment | ||
• Proactive O&M with resource and health prediction for fast and accurate troubleshooting | |||
• O&M LCD information display | |||
Reliability | 1 + 1 control board protection | ||
Power Supply | Backup | 1 + 1 power supply backup | |
AC | • Rated voltage range: | ||
100 V AC to 120 V AC (50/60 Hz) | |||
200 V AC to 240 V AC (50/60 Hz) | |||
• Maximum voltage range: 90 V AC to 264 V AC (47 Hz to 63 Hz) | |||
High-Voltage DC | • Rated voltage: 240 V HVDC | ||
• Maximum voltage range: 192 V HVDC to 288 V HVDC | |||
DC | • Rated voltage: –48 V DC | ||
• Maximum voltage range: –40 V DC to –72 V DC | |||
Heat Dissipation | • Front-to-rear air flow | ||
• 2 + 1 fan tray assembly backup | |||
