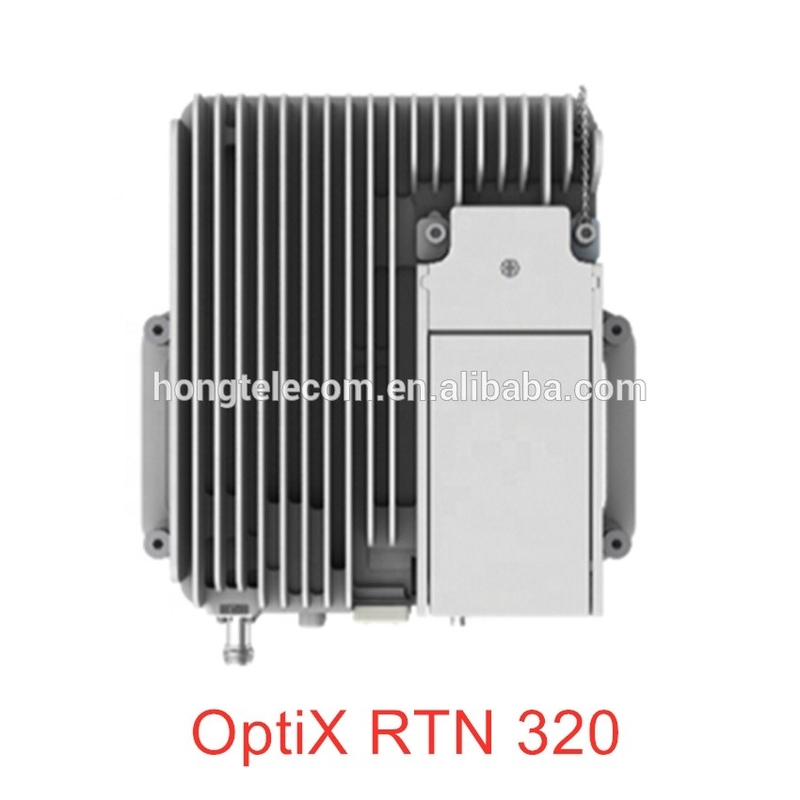

Huawei OptiX RTN 320 Radio Transmmission System RTN320

Name: Huawei OptiX RTN 320 Radio Transmmission System RTN320
Brand: Huawei
SKU: RTN 320
Availability: InStock
ISBN: 13956398

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	RTN 320

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Model:	OptiX RTN 320	Chassis Dimensions (H X W X D):	260 Mm X 210 Mm X 101 Mm
Microwave Type:	IP Microwave	ETSI Channel Spacings:	7/14/28/40/56/112 MHz
FCC Channel Spacings:	30/40/50 MHz	Microwave Directions:	2
Maximum Air Capacity:	800 Mbit/s	Air-interface Service Throughput:	2.4 Gbit/s
Maximum Switching Capacity:	8 Gbit/s	Channel Configuration Modes:	ACAP; ACCP; CCDP.

Huawei OptiX RTN 320 Radio Transmmission System RTN320

The RTN 320 is radio transmission equipment that provides transmission solutions for both mobile communication networks and private networks.

The RTN 320 integrates all of its functions into a compact outdoor chassis that can be mounted on a pole, thereby achieving zero footprint in terms of installation space. The RTN 320 can work with an extended ODU to provide two microwave directions. Therefore, the RTN 320 helps lower network construction costs and operating expenses.

The RTN 320 supports flexible networking. RTN 320s can form ring or chain backhaul networks for IP base stations.

The RTN 320 supports 4096QAM, 112 MHz channel spacing, XPIC, PLA/EPLA, MIMO,and 1+1 HSB/FD/SD. With such capabilities, the RTN 320 provides high-bandwidth backhaul links for high-capacity 3G/LTE base stations.

On mobile communication networks, the RTN 320 can:

1. Operate independently to form ring or chain backhaul networks to provide links with high capacity, bandwidth, and reliability for 3G/LTE base stations.

2. Work with the ATN to provide a microwave channel solution for transparent transmission on the IP radio access network (IP RAN).

3. Work with the RTN 380H housing MXXI5 boards to form a full-outdoor Super Dual Band solution. With this solution, zero footprint as well as large-bandwidth and long-distance mobile backhaul links can be provided. This solution applies to tail sites without outdoor cabinets or equipment rooms.

Specification

RTN 320 Item	Specifications
Microwave type	IP microwave over native Ethernet and over PWE3 Ethernet
Number of microwave directions	2
Frequency bands	Integrated ODU: 7 GHz, 8 GHz, 11 GHz, 13 GHz, 15 GHz, 18 GHz, 23 GHz, 26 GHz, 28 GHz, 32 GHz, 38 GHz Extended ODU (RTN XMC ODU): 6 GHz, 7 GHz, 8 GHz, 10 GHz, 10.5 GHz, 11 GHz, 13 GHz, 15 GHz, 18 GHz, 23 GHz, 26 GHz, 28 GHz, 32 GHz, 38 GHz, 42 GHz
Channel spacings	ETSI: 7/14/28/40/56/112 MHz FCC: 30/40/50 MHz
Modulation schemes	QPSK Strong/QPSK/16QAM Strong/16QAM/32QAM/64QAM/128QAM/256QAM/512QAM/512QAM Light/1024QAM/1024QAM Light/2048QAM/4096QAM
Capacity	Maximum air capacity: 800 Mbit/s Maximum air-interface service throughput: 2.4 Gbit/s Maximum switching capacity: 8 Gbit/s
RF configuration modes	N+0 (N ≤ 4) (When N is greater than 2, NEs must be cascaded.) 1+1 HSB/FD/SD configuration XPIC configuration MIMO configuration: intra-NE 2x2 MIMO, inter-NE 2x2 MIMO, and 4x4 MIMO Multi-direction site configuration
Channel configuration modes	ACAP ACCP CCDP
AM	Supported
ATPC	Supported
Super Dual Band	Support for working with the RTN 380H housing the MXXI5 board to form a full-outdoor Super Dual Band solution
Ethernet frame header compression	Supported
PLA/EPLA	Intra-equipment PLA Intra-equipment EPLA and inter-equipment EPLA
LLDP	Supported
QoS/HQoS	Supported
Service ports	Two FE/GE SFP ports Two GE fixed electrical ports One power over Ethernet (P&E) port Two MIMO ports
Service types	Native Ethernet services: E-Line service and E-LAN service PW-carried Ethernet services: E-Line service, E-Aggr service, and E-LAN (VPLS) service (VPLS standing for virtual private LAN service)
MPLS Tunnel	Supported
PWE3	Supported
Clock features	Supported clock sources: microwave link clock and synchronous Ethernet clock IEEE 1588v2 time synchronization ITU-T G.8257.1 time synchronization
Power supply modes	P&E (supports power supplied by the matching power supply equipment, such as RTN B20 PI.) DC power
ODU	The integrated ODU supports the 7 GHz, 8 GHz, 11 GHz, 13 GHz, 15 GHz, 18 GHz, 23 GHz, 26 GHz, 28 GHz, 32 GHz and 38 GHz frequency bands. The extended ODU is an RTN XMC-2/2H/3 ODU, which covers the entire frequency band from 6 GHz to 42 GHz.
Antenna	Single-polarized antennas and dual-polarized antennas with a diameter of 0.2 m to 3.7 m as well as the corresponding antenna feeder accessories, providing a full-band antenna solution.
