Huawei LTX OSN 9800 UPS TN15LTX 03030XAJ TN15LTXT51

Huawei LTX OSN 9800 UPS TN15LTX 03030XAJ TN15LTXT51

  • Huawei LTX OSN 9800 UPS TN15LTX 03030XAJ TN15LTXT51
  • Huawei LTX OSN 9800 UPS TN15LTX 03030XAJ TN15LTXT51
Huawei LTX OSN 9800 UPS TN15LTX 03030XAJ TN15LTXT51
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: OSN 9800 UPS
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Type: Transmission Parts Model: TN15LTXT51
OSN 9800 UPS Dimensions: 397 X 442 X 295mm (without Cabinet) DC Power Service Boards: 16 Slots
AC Power Service Boards: 15 Slots

Certifications
Huawei LTX OSN 9800 UPS TN15LTX 03030XAJ TN15LTXT51 0

Hong Telecom Equipment Service LTD (HongTelecom) is formal distributor of Huawei, ZTE and Emerson. Our team come from Huawei, ZTE, Emerson, CISCO, Alcatel, Ericsson, Fiberhome mostly. So we have established very good cooperative relationship with Huawei, Ericsson, Nokia, NSN, ZTE, Vertiv, Emerson, Fiberhome, Cisco, Juniper, HPE, DELL, Alcatel-Lucent, Nortel, H3C. We can provide one-stop purchasing platform for our customer with very good price and very fast delivery.

Huawei LTX OSN 9800 UPS TN15LTX 03030XAJ TN15LTXT51 2
Our Company
Huawei LTX OSN 9800 UPS TN15LTX 03030XAJ TN15LTXT51 4

Hong Telecom Equipment Service LTD (HongTelecom)  is a leading professional equipment distributor and service provider in telecommunication infrastructure and solution field, and now is extending our business to ICT (Information and Communication Technology) field.

HongTelecom offer full range of telecom infrastructure products, our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION(SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Huawei/Ericsson/ NSN/Alcatel/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.

Product Introduction

TN15LTX LTX: 10-Port 10Gbit/s Service Multiplexing & Optical Wavelength Conversion Board including the following models:

03030XAJ TN15LTXT51
03031HMM TN15LTXT65
03030YHF TN15LTXT53
03030YHE TN15LTXT52
03030YDT TN15LTXT61

Product Appearance

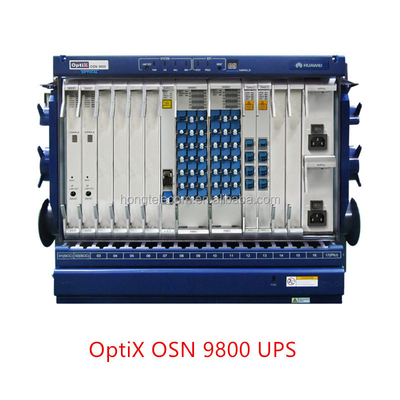

The huawei Optix OSN 9800 U64 U32 U16

Huawei LTX OSN 9800 UPS TN15LTX 03030XAJ TN15LTXT51 6
Huawei LTX OSN 9800 UPS TN15LTX 03030XAJ TN15LTXT51 8

Product features


To address ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, OptiX OSN 9800 U32, OptiX OSN 9800 U16 and OptiX OSN 9800 universal platform subrack. Applied at the electrical layer, the OptiX OSN 9800 U64, OptiX OSN 9800 U32 and OptiX OSN 9800 U16 share boards by using unified software and hardware platforms and can work with the OptiX OSN 9800 universal platform subrack, OptiX OSN 8800 T16 and OptiX OSN 6800 optical subracks in WDM and OTN systems.



The industry's largest capacity MS-OTN platform, with flexible services grooming

 * Provides the industry's largest OTN cross-connect capacity. The OptiX OSN 9800 can currently offer 25.6 Tbit/s congestion free cross-connections. In the future, this can be expanded to over 100 Tbit/s by using a cluster solution. The large cross-connect capacity of the OptiX OSN 9800 enables the flexible grooming of massive services.

* Provides large-capacity OTN electrical cross-connections and 20-degree ROADM optical cross-connections, improving network flexibility by enabling wavelength-level and sub wavelength-level grooming and quick service deployment.

* Implements unified access, switching, and transmission of OTN, VC, and packet services using a universal switching matrix based on the industry-leading Tbit/s universal switching chip.

* Improves network flexibility by supporting service switching, grooming, and transmission within a node in any format, including PW, LSP, Ethernet, ODUk, and VC.

* Provides an industry's only 100G universal line board and 100GE tributary board that supports L2 functions, enabling the efficient transmission of IP services.

Optimal 100G/400G transmission technology, meeting future bandwidth requirements

* Uses industry-leading super 100G technology to implement up to 7000 km transmission without electrical regeneration.

* Features the highest integration in the industry. A single slot of the OptiX OSN 9800 U series supports a maximum of four 100G coherent line optical ports, and each subrack can provide up to 256 100GE ports on the client side. This ultra-high integration saves equipment room space and reduces energy consumption.

* Achieves the industry's first commercial use of 200G/400G and supports evolution to 1T/2T in the future.

Open and flexible network based on TSDN

* Supports smooth evolution to flexible optical networks based on TSDN architecture. Implements programmable control on the coding format, FEC type, number of carriers, and spectral width to meet the transmission rate and distance requirements in various application scenarios and to provide optimal network performance.

* Supports various apps and innovative services, and implements intelligent network management and the unified grooming of cross-layer and cross-domain network resources.

Energy-Saving and Easy Maintenance, Improving O&M Efficiency

* Features refined and dynamic energy saving mechanisms, highly integrated ASIC chips. Advanced energy saving technologies, such as intelligent warm backup, are highly efficient and greatly reduce power consumption.

* Provides a unique Optical Doctor (OD) system that monitors online OSNR for any wavelength (10G/40G/100G/200G/400G) at any site. The OD system supports quick deployment and fault isolation, avoids investment in expensive instrument, and reduces maintenance costs.

* Supports the online OTDR function by an OSC board, which measures fiber parameters and rapidly locates fault points and deterioration points on a fiber.

* Provides an advanced bandwidth resource platform, enabling visible, simple, and intelligent O&M. This platform is easy to use, displays the current bandwidth distribution on a visible interface, automatically evaluates bandwidth trends, reports alarms if the bandwidth is insufficient, and supports user-friendly human-computer interaction.

* Uses a unique intelligent power supply pool and the "pay as you grow" mode, supporting visible power supply management on the NMS to achieve on-demand power allocation and expansion.

* Supports the transmission of 2M, IEEE 1588v2, and synchronous Ethernet clocks to fully satisfy the clock precision requirements on 3G, 4G, and future 5G networks.

Product Specification


The Huawei OptiX OSN 9800 UPS (Universal Platform Subrack) Specifications:

Specifications
OptiX OSN 9800 UPS ( Universal Platform Subrack)
Subrack dimensions (mm)
397 mm (H) x 442 mm (W) x 295 mm (D) (without cabinet)
Suitable cabineta
ETSI 300/600 cabinets, such as N63B and N66B
19-inch cabinet
Number of slots for service boards
DC power supply: 16
AC power supply: 15
Switching capability
Optical
1 to 20-degree reconfigurable optical add/drop multiplexer (ROADM)
Electrical
N/A
Max. number of wavelengths
Fixed grid: 96 wavelengths @50 GHz grid

Flex grid: The maximum number of wavelengths is related to the width of the flex channel.
Center wavelength range
DWDM system: 1529.16 nm to 1567.13 nm (extend C-band, ITU-T G.694.1)
Max. rate per channel
200 Gbit/s (OTUC2)
Service type
Synchronous digital hierarchy (SDH)/ synchronous optical network (SONET), Ethernet, storage area network (SAN), optical transport network (OTN), and video
Packet service capacity
N/A
Line rate
2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 100 Gbit/s, 200 Gbit/s
Supported pluggable optical modules
eSFP, SFP+, XFP, CFP, CFP2, QSFP28
Topology
Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring, and mesh
Redundancy and protection
Equipment level protection
Power redundancy, fan redundancy, system control and communication board redundancy
Network level protection (OTN)
Optical line protection, client 1+1 protection, SW SNCP, intra-board 1+1 protection, LPT
Network Level Protection (Packet)
N/A
Network Level Protection (OCS)
N/A
Optical power management
ALS, AGC, ALC, APE, IPA, IPA of Raman System
Easy O&M
Optical Doctor System(OD), Fiber Doctor System
Synchronization
Synchronous Ethernet clock
IEEE 1588v2
2 Mbit/s or 2 MHz (with the SSM function), ITU-T G.703-compliant external clock source
External time source (1PPS+TOD)
ITU-T G.8275.1
ASON
Optical-Layer ASON
TSDN
N/A
Submarine Features
DC Power Supply:
Nominal working voltage: -48V DC/-60V DC
Working voltage range:
-48V DC: -40V to -57.6V
-60V DC: -48V to -72V

AC Power Supply:
Nominal working voltage: 110V AC/220V AC
Working voltage range: 90 V to 290 V
Operation Environment
Subrack temperature:
Long-term operation: 5°C (41 °F) to 45°C (113 °F)
Short-term operationa: -5°C (23 °F) to 55°C (131 °F)

Relative humidity:
Long-term operation: 5% to 85%
Short-term operationa: 5% to 95%
Mean Time To Repair (MTTR)
4 hours
Mean Time Between Failure (MTBF)
50 years
a: The ETSI/19-inch standard defines only part of the cabinet dimensions. Therefore, the distance between the cabinet column and door plate varies depending on cabinet manufacturers. For details about the dimensions of different subracks, see the detailed description of each subrack.

b: Short-term operation means that the continuous operating time does not exceed 96 hours and the accumulated time per year does not exceed 15 days.
