Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OSN 9800 UPS |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Model: | TN12LDX02 | Dimensions: | 397 X 442 X 295mm (without Cabinet) |
|---|---|---|---|
| DC Power Service Boards: | 16 Slots | AC Power Service Boards: | 15 Slots |

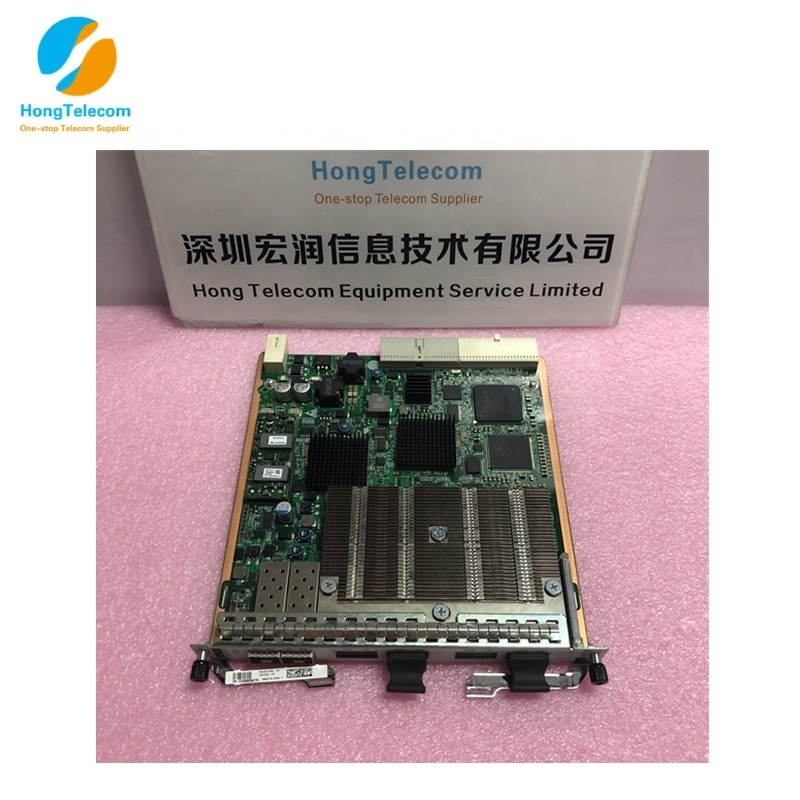

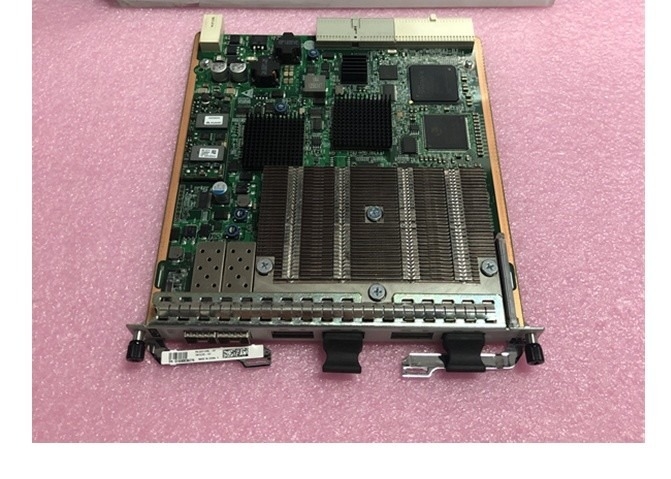

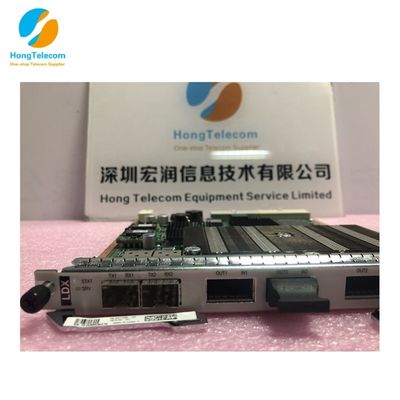

03030TBD TN12LDX02
03030KLJ TN12LDX01

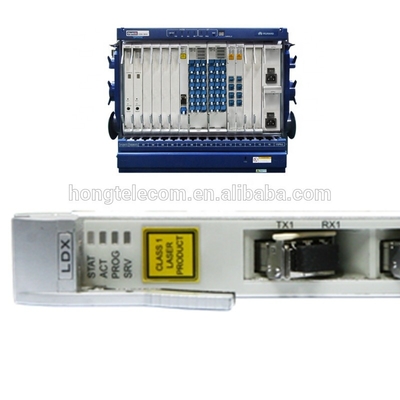

The huawei Optix OSN 9800 U64 U32 U16
The Huawei OptiX OSN 9800 UPS (Universal Platform Subrack) Specifications:
Specifications | OptiX OSN 9800 UPS ( Universal Platform Subrack) | |||
Subrack dimensions (mm) | 397 mm (H) x 442 mm (W) x 295 mm (D) (without cabinet) | |||
Suitable cabineta | ETSI 300/600 cabinets, such as N63B and N66B 19-inch cabinet | |||
Number of slots for service boards | DC power supply: 16 AC power supply: 15 | |||
Switching capability | Optical | 1 to 20-degree reconfigurable optical add/drop multiplexer (ROADM) | ||
Electrical | N/A | |||
Max. number of wavelengths | Fixed grid: 96 wavelengths @50 GHz grid Flex grid: The maximum number of wavelengths is related to the width of the flex channel. | |||
Center wavelength range | DWDM system: 1529.16 nm to 1567.13 nm (extend C-band, ITU-T G.694.1) | |||
Max. rate per channel | 200 Gbit/s (OTUC2) | |||
Service type | Synchronous digital hierarchy (SDH)/ synchronous optical network (SONET), Ethernet, storage area network (SAN), optical transport network (OTN), and video | |||
Packet service capacity | N/A | |||
Line rate | 2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 100 Gbit/s, 200 Gbit/s | |||
Supported pluggable optical modules | eSFP, SFP+, XFP, CFP, CFP2, QSFP28 | |||
Topology | Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring, and mesh | |||
Redundancy and protection | Equipment level protection | Power redundancy, fan redundancy, system control and communication board redundancy | ||
Network level protection (OTN) | Optical line protection, client 1+1 protection, SW SNCP, intra-board 1+1 protection, LPT | |||
Network Level Protection (Packet) | N/A | |||
Network Level Protection (OCS) | N/A | |||
Optical power management | ALS, AGC, ALC, APE, IPA, IPA of Raman System | |||
Easy O&M | Optical Doctor System(OD), Fiber Doctor System | |||
Synchronization | Synchronous Ethernet clock IEEE 1588v2 2 Mbit/s or 2 MHz (with the SSM function), ITU-T G.703-compliant external clock source External time source (1PPS+TOD) ITU-T G.8275.1 | |||
ASON | Optical-Layer ASON | |||
TSDN | N/A | |||
Submarine Features | DC Power Supply: Nominal working voltage: -48V DC/-60V DC Working voltage range: -48V DC: -40V to -57.6V -60V DC: -48V to -72V AC Power Supply: Nominal working voltage: 110V AC/220V AC Working voltage range: 90 V to 290 V | |||
Operation Environment | Subrack temperature: Long-term operation: 5°C (41 °F) to 45°C (113 °F) Short-term operationa: -5°C (23 °F) to 55°C (131 °F) Relative humidity: Long-term operation: 5% to 85% Short-term operationa: 5% to 95% | |||
Mean Time To Repair (MTTR) | 4 hours | |||
Mean Time Between Failure (MTBF) | 50 years | |||
a: The ETSI/19-inch standard defines only part of the cabinet dimensions. Therefore, the distance between the cabinet column and door plate varies depending on cabinet manufacturers. For details about the dimensions of different subracks, see the detailed description of each subrack. b: Short-term operation means that the continuous operating time does not exceed 96 hours and the accumulated time per year does not exceed 15 days. | ||||
