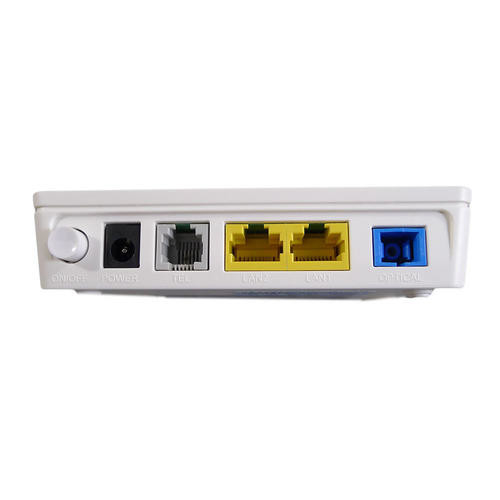

GPON Huawei Echolife Hg8240 Wifi Terminal FTTH Telecom OLT ONT Device

GPON optical wifi terminal HG8120 FTTH telecom OLT ONT device

The HG8120 GPON terminal (hereafter referred to as the HG8120) is an indoor optical network terminal (ONT) designed for home users and small office and home office (SOHO) users. Its upper shell adopts the natural heat dissipation material, and its optical port adopts the dust-proof design with a rubber plug. The HG8120 is eye-pleasing and energy-efficient. It can be deployed on a workbench or mounted on a wall, meeting users' deployment requirements in different scenarios.
By using the Gigabit-capable Passive Optical Network (GPON) technology, the HG8120 provides a high-speed data channel through a single optical fiber with an upstream rate of 1.244 Gbit/s and a downstream rate of 2.488 Gbit/s. In this way, you can enjoy the high-speed data service, quality voice service, superior video service.
As an ONT, the HG8120 provides the more convenient and efficient remote management function. It supports the ONT Management and Control Interface (OMCI) protocols and manages all home terminals in a unified manner, implementing remote fault diagnosis, service provisioning, and performance statistics.

Specifications:

• Support transceiver information reporting by OMCI(such as vender, serial
  number)
• Support LOID registration and authentication
• Support ONU silence mechanism
• Support Rogue ONU detecting
• Support Dying Gasp
• ONT supports up to 2.488Gbs downstream and up to 1.244Gbs upstream
  with a minimum 28dB budget, compliant with ITU-T G.984.3
• Physical layer is compliant with ITU-T G. G.984.2.

• GPON OMCI is compliant with ITU-T GEM mode OMCI as specified in ITU-T
  G. 984.4 and ITU-T G.988
• DBA support via mode-0 DBRu (piggy-back) reporting
• ONT supports 128-bit downstream AES with key switching
• Forward Error Correction (FEC)
• Upstream Traffic Management using Priority-based or Rate-controlled
  scheduling
• Support for up to 8 T-CONTS with multiple priority queues per T-CONT
• 64 GEM ports with flexible mapping between TCONTs and Priority queues
• 1 GEM port for multicast, 1 GEM port for OMCI, others for Ethernet.

GPON Features:

1, Compliance with ITU-T G.984 GPON Recommendations;
2, Class B+ optical power budget;
3,A maximum upstream rate of 1.244 Gbit/s and downstream rate of 2.488 Gbit/s at the GPON
   physical layer;

4, GEM encapsulation mode;
5,8 T-CONTs with up to 32 GEM ports;
6,GEM port to T-CONT mapping;
7,Multiple traffic mapping modes:
– Mapping from VLAN to GEM port
– Mapping from PRI to GEM port
– Mapping from Ethernet port to GEM port
– Mapping from VLAN+PRI to GEM port
– Mapping from Ethernet port+VLAN to GEM port
– Mapping from Ethernet port+PRI to GEM port
– Mapping from Ethernet port+VLAN+PRI to GEM port
– Mapping from IPToS to GEM port
8,Dynamic Bandwidth Assignment (DBA);
9,Forward error correction (FEC) function in the upstream and downstream directions;
10,Embedded OAM, physical layer OAM (PLOAM), and OMCI;
11,128-bit advanced encryption standard (AES) in the downstream direction;
12,Authentication modes of SN, password, and SN+password;
13,Deactivation/Activation and re-register of the ONT;
14,Loopback test based on the GEM port;

.........
