DWDM OSN 9800 U64 TNV1SXCL Huawei SXCL

DWDM OSN 9800 U64 TNV1SXCL Huawei SXCL

  • DWDM OSN 9800 U64 TNV1SXCL Huawei SXCL
  • DWDM OSN 9800 U64 TNV1SXCL Huawei SXCL
DWDM OSN 9800 U64 TNV1SXCL Huawei SXCL
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: OSN 9800 U64
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Type: Transmission Model: TNV1SXCL
OSN 9800 U64 Dimensions: 2200x600x600mm(with Cabinet) OSN 9800 U32 Dimensions: 1900x498x295mm
OSN 9800 U16 Dimensions: 847x442x295mm OSN9800 U64 Installation Rack: ETSI 600mm Rack
OSN9800 U32 Installation Rack: ETSI 300/600mm Rack OSN9800 U16 Installation Rack: ETSI/19 Inch Rack
Power Supply: -48VDC/-60VDC Rate Per Channel (Max.): 100G, 200G, 400G, 1T, 2T
Service Types Supported: SDH, SONET, Ethernet, SAN, OTN, Video

Certifications
DWDM OSN 9800 U64 TNV1SXCL Huawei SXCL 0

Hong Telecom Equipment Service LTD (HongTelecom) is formal distributor of Huawei, ZTE and Emerson. Our team come from Huawei, ZTE, Emerson, CISCO, Alcatel, Ericsson, Fiberhome mostly. So we have established very good cooperative relationship with Huawei, Ericsson, Nokia, NSN, ZTE, Vertiv, Emerson, Fiberhome, Cisco, Juniper, HPE, DELL, Alcatel-Lucent, Nortel, H3C. We can provide one-stop purchasing platform for our customer with very good price and very fast delivery.

DWDM OSN 9800 U64 TNV1SXCL Huawei SXCL 2
Our Company
DWDM OSN 9800 U64 TNV1SXCL Huawei SXCL 4

Hong Telecom Equipment Service LTD (HongTelecom)  is a leading professional equipment distributor and service provider in telecommunication infrastructure and solution field, and now is extending our business to ICT (Information and Communication Technology) field.

HongTelecom offer full range of telecom infrastructure products, our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION(SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Huawei/Ericsson/ NSN/Alcatel/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.

Product Introduction

Product Appearance

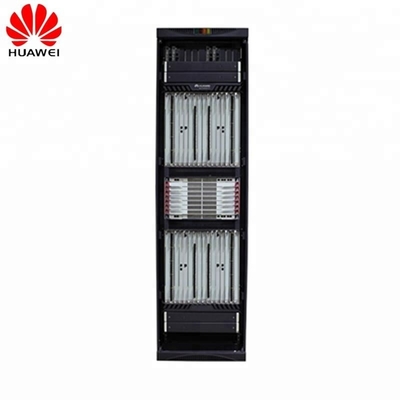

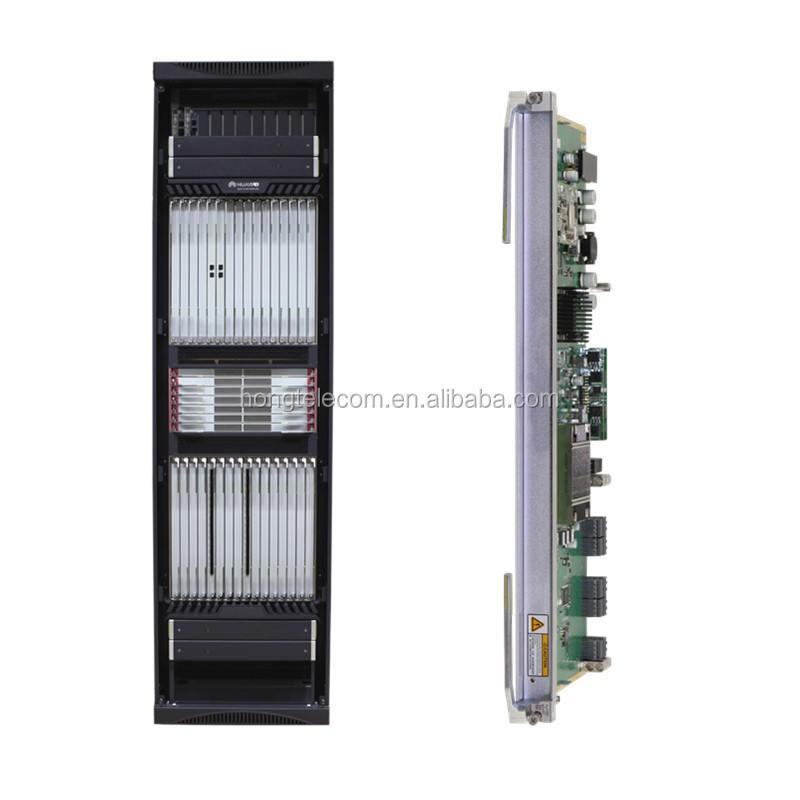

The huawei Optix OSN 9800 U64 U32 U16

DWDM OSN 9800 U64 TNV1SXCL Huawei SXCL 6

Huawei Optix OSN 9800 U64 boards

TNV1T130
TNV1T120S
TNV1T210
TNV2T210
TNV2T220
TNV3T210
TNV3T220
TNV3T230
TNV1T302
TNV2T302
TNV1T401
TNV3T401
TNV1T402
TNV3T402
TNV2T404
TNV3T404
TNV2T220E
TN12D40
TN12M40
TN12M40V
TN11ITL06
TN13FIU
TN16FIU
TN52DAP
TN52DAPXF
TN13OAU1
TN13OBU1
TN11SRAU
TNV2N220
TNU2N401
TNU3N401
TNV2N401
TNU5N401
TNU2N402
TNU3N402
TNV2N402
TNU5N402
TNU4N404
TNU5N404
TNU1N401P
TNU2N402P
TNU1N501
TNU2N501
TNU1N601
TN51MCS0816
TN12TD20
TN13TM20
TN15TM20
TN17WSMD4
TN15WSMD9
TN15DWSS20
TN51DWSS20
TN52DWSS20
TNV1U210
TNU2U401
TNV2U401
TNU3U401
TNU4U401
TNU4U402
TNV2G210
TNV2G220
TNU1G404
TNU1G402
TNV1E124
TNV1E401
TNV1E302
TNV1E212
TNV1E208
TNV1EC116
TNV1EC404
TN11AST2
TN51LMU
TN13ST2
TN13DCP
TN13OLP
TN11QCP
TN12OPM8
TN15OPM8
TN13VA4
TNV1S216
NP400NP400E
TNV1SXCL
TN12LDX
TN13LQM
TN17LSC
TN18LSC
TN11LDC
TN17LSCM
TN15LSXL
TN14LSX
TN15LTX
TN17LTX
TN55NO2
TN53NQ2
TN54NS4
TN97ASE
TN97D48
TN97ERPC
TN97M48V
TN97OAU2
TN97ITL04
TN97OPM8
TN97TM20
TN96WSD9
TN96WSM9

Product features


The industry's largest capacity MS-OTN platform, with flexible services grooming

 * Provides the industry's largest OTN cross-connect capacity. The OptiX OSN 9800 can currently offer 25.6 Tbit/s congestion free cross-connections. In the future, this can be expanded to over 100 Tbit/s by using a cluster solution. The large cross-connect capacity of the OptiX OSN 9800 enables the flexible grooming of massive services.

* Provides large-capacity OTN electrical cross-connections and 20-degree ROADM optical cross-connections, improving network flexibility by enabling wavelength-level and sub wavelength-level grooming and quick service deployment.

* Implements unified access, switching, and transmission of OTN, VC, and packet services using a universal switching matrix based on the industry-leading Tbit/s universal switching chip.

* Improves network flexibility by supporting service switching, grooming, and transmission within a node in any format, including PW, LSP, Ethernet, ODUk, and VC.

* Provides an industry's only 100G universal line board and 100GE tributary board that supports L2 functions, enabling the efficient transmission of IP services.

Optimal 100G/400G transmission technology, meeting future bandwidth requirements

* Uses industry-leading super 100G technology to implement up to 7000 km transmission without electrical regeneration.

* Features the highest integration in the industry. A single slot of the OptiX OSN 9800 U series supports a maximum of four 100G coherent line optical ports, and each subrack can provide up to 256 100GE ports on the client side. This ultra-high integration saves equipment room space and reduces energy consumption.

* Achieves the industry's first commercial use of 200G/400G and supports evolution to 1T/2T in the future.

Open and flexible network based on TSDN

* Supports smooth evolution to flexible optical networks based on TSDN architecture. Implements programmable control on the coding format, FEC type, number of carriers, and spectral width to meet the transmission rate and distance requirements in various application scenarios and to provide optimal network performance.

* Supports various apps and innovative services, and implements intelligent network management and the unified grooming of cross-layer and cross-domain network resources.

Energy-Saving and Easy Maintenance, Improving O&M Efficiency

* Features refined and dynamic energy saving mechanisms, highly integrated ASIC chips. Advanced energy saving technologies, such as intelligent warm backup, are highly efficient and greatly reduce power consumption.

* Provides a unique Optical Doctor (OD) system that monitors online OSNR for any wavelength (10G/40G/100G/200G/400G) at any site. The OD system supports quick deployment and fault isolation, avoids investment in expensive instrument, and reduces maintenance costs.

* Supports the online OTDR function by an OSC board, which measures fiber parameters and rapidly locates fault points and deterioration points on a fiber.

* Provides an advanced bandwidth resource platform, enabling visible, simple, and intelligent O&M. This platform is easy to use, displays the current bandwidth distribution on a visible interface, automatically evaluates bandwidth trends, reports alarms if the bandwidth is insufficient, and supports user-friendly human-computer interaction.

* Uses a unique intelligent power supply pool and the "pay as you grow" mode, supporting visible power supply management on the NMS to achieve on-demand power allocation and expansion.

* Supports the transmission of 2M, IEEE 1588v2, and synchronous Ethernet clocks to fully satisfy the clock precision requirements on 3G, 4G, and future 5G networks.

Product Specification

The Huawei OptiX OSN 9800 Specifications:

Specifications
OSN 9800 U16
OSN 9800 U32
OSN 9800 U64
Dimensions (HxWxD)
847x442x295mm
1900×498x295mm
2200x600x600mm(with cabinet)
Number of Service Slots
14
32
64
Switching
Capability
Optical
Up to 20-degree C-D-C-G ROADM
Electrical
5.6Tbit/s universal switching
6.4 /12.8Tbit/s universal switching
12.8/25.6Tbit/s universal switching
Number of
Ports
Max OTU4 Ports
28/56
64/128
128/256
Max 100GE Ports
28/56
64/128
128/256
Max OTU3 Ports
28
64
128
Max 40GE Ports
28
64
128
Max OTU2 Ports
280
640
1280
Max 10G Ports
280
640
1280
Max GE/2.5G Ports
420
960
1920
Max OTUC2 Ports
14
32
64
Max OTUC4 Ports
7/14
16/32
32/64
Channel Spacing
50/100GHz fixed grid for 40/80-ch
Flex-grid
Wavelength Range
DWDM: 1529.16 nm to 1560.61 nm (C Band, ITU-T G.694.1)
Rate per Channel (Max.)
100G, 200G, 400G, 1T, 2T
Service Types Supported
SDH, SONET, Ethernet, SAN, OTN, video
Topology
Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring and mesh
Redundancy
and Protection
Equipment
1+1 power input protection, 1+1 fan protection, M:N switch board protection, 1+1 controller protection
Network
OTN: Optical line protection, client 1+1 protection, ODUk SNCP, tributary SNCP, intra-board 1+1
protection,LPT, ASON/GMPLS
PKT: PW APS, Tunnel APS, LAG
Optical Power Management
ALS, AGC, ALC, APE, IPA
Synchronization
IEEE 1588v2, Sync-E
2Mbit/s or 2MHz (with the SSM function), ITU-T G.703-compliant external clock source
External clock source (1PPS+TOD)
ASON/GMPLS
Automatic network discovery
ODUk/λ level protection and restoration
5-Level SLA (Service Level Agreement) provisioning
End-to-end service configuration
Shared Risk Link Group (SRLG)
Traffic engineering
T-SDN
Automation, IP+Optical , BOD
Installation Rack
ETSI/19 inch rack
ETSI 300/600mm rack
ETSI 600mm rack
Heat Dissipation
Fan
Power Supply
-48VDC/-60VDC
Operation Environment
Temperature:
Long-term operation: 5°C to 40°C
Short-term operation: -5°C to 45°C
Relative humidity:
Long-term operation: 5% to 85%
Short-term operation: 5% to 90%
