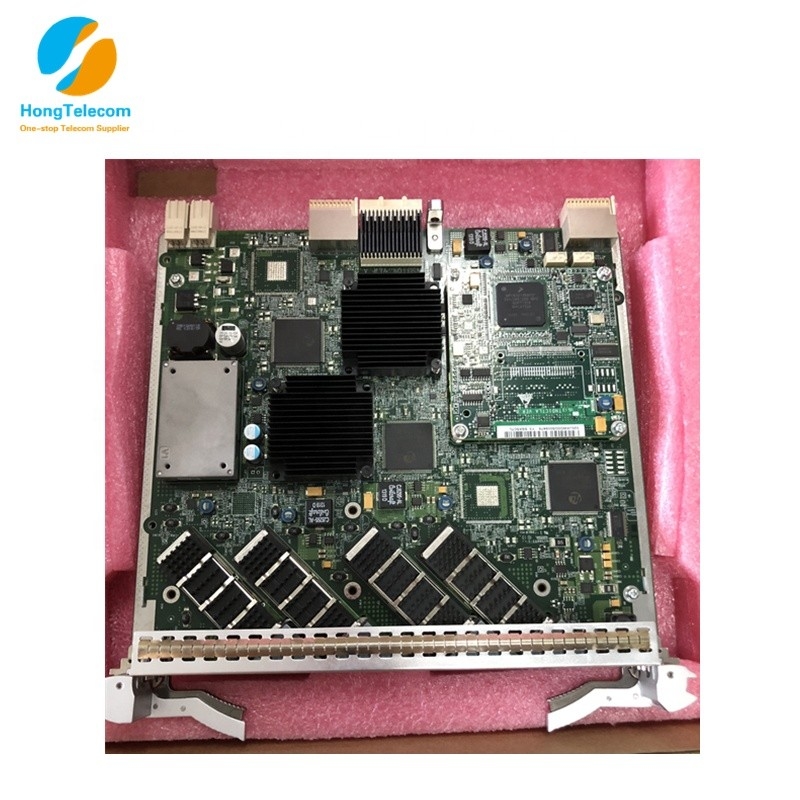

DWDM OSN 8800 TQX board 03021ETL-001 TN55TQX

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	OSN 8800

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Part Number:	03021ETL-001	Model Number:	TN55TQX-003
OSN 8800 T16 Dimensions (mm):	498 (W) X 295 (D) X 450 (H)	OSN 8800 T32 Dimensions (mm):	498 (W) X 295 (D) X 900 (H)
OSN 8800 T64 Dimensions (mm):	498 (W) X 580 (D) X 900 (H)	DWDM Wavelength:	80-ch (max)
CWDM Wavelength:	8-ch (max)	Max. Rate Per Channel:	100Gbit/s (OTU4)
Max. Capacity Per PID Group:	200 Gbit/s	Optical Power Management:	ALS, AGC, ALC, APE, IPA, OPA

The OptiX OSN 8800 T64 / T32 / T16 can be configured as a complete OTN end-to-end network. It can also be used with the OptiX BWS 1600G, OptiX OSN 1800, OptiX OSN 9800, and with NG-SDH / PTN or Datacom Equipment, mixed network, to achieve a complete transmission solution.

Specifications			OSN 8800 T16	OSN 8800 T32	OSN 8800 T64
Dimensions (mm)			498 x 295x 450 (W) (D) (H)	498 x 295 x 900 (W) (D) (H)	498 x 580 x 900 (W) (D) (H)
Number of slots for service boards			16	32	64
Switch	Optical	1 to 9-degree ROADM
		Electrical	1.6T ODUk(k=0, 1, 2, 2e, 3, 4, flex) 640G VC-4 and 20G VC-3/VC-12 800G Packet	Enhanced subrack: 3.2T ODUk(k=0, 1, 2, 2e, 3, 4, flex)1.28T VC-4 and 80G VC-3/VC-12 1.6T Packet General subrack: 1.28T ODUk(k=0, 1, 2, 2e, 3, flex)1.28T VC-4 and 80G VC-3/VC-12	Enhanced subrack: 6.4T ODUk(k=0, 1, 2, 2e, 3, 4, flex)1.28T VC-4 and 80G VC-3/VC-12 General subrack: 2.56T ODUk(k=0, 1, 2, 2e, 3, flex)1.28T VC-4 and 80G VC-3/VC-12
Wavelength range			DWDM: 1529.16 nm to 1560.61 nm (Band-C, ITU-T G.694.1) CWDM: 1471 nm to 1611 nm (Band S+C+L, ITU-T G.694.2)
Max. rate per channel			100Gbit/s (OTU4)
Max. distance			Multi-span transmission (without electrical regeneration): 32 span x 22dB/span (10G), 25 span x 22 dB/span (40G), 20 span x 22 dB/span (100G) Ultra-long single-span transmission: 1 span x 81 dB/span (10G), 1 span x 71 dB/span (40G)
Service types supported			SDH, SONET, Ethernet, SAN, OTN, Video
Line rate			2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 100 Gbit/s
Max. capacity per PID group			200 Gbit/s
Topology			Point-to-point, chain, star, ring, ring-with-chain, tangent ring,intersecting ring and mesh
Redundancy and Protection	Network level protection (OTN)	Optical line protection, intra-board 1+1 protection, client 1+1 protection, ODUk SNCP, tributary SNCP, SW SNCP, ODUk SPRing protection, OWSP
		Network level protection (OCS)	Linear MSP, MSP ring, transoceanic MSP ring, SNCP, SNCTP
		Network level protection (Ethernet and packet)	DBPS, DLAG, ERPS, LAG, LPT, MC-LAG, MSTP, PW APS, STP and RSTP, Tunnel APS, VLAN SNCP	DBPS, DLAG, ERPS, LAG, LPT, MC-LAG, MSTP, PW APS, STP and RSTP, Tunnel APS, VLAN SNCP	DBPS, DLAG, ERPS, LAG, LPT, MC-LAG, MSTP, STP and RSTP, VLAN SNCP
		Equipment level protection	Power redundancy, fan redundancy, cross-connect board redundancy, system control and communication board redundancy, centralized clock board redundancy, AUX Board 1+1 Redundancy
Optical power management			ALS, AGC, ALC, APE, IPA, OPA
Synchronization			Synchronous Ethernet clock IEEE 1588v2 2 Mbit/s or 2 MHz (with the SSM function), ITU-T G.703-compliant external clock source External time source (1PPS+TOD)
ASON			An OTN network supports the Optical-Layer ASON and electrical-Layer ASON. An OCS network supports the SDH ASON feature.
Operation Environment			Subrack temperature: Long-term operation: 5°C (41 °F) to 45°C (113 °F) Short-term operation: -5°C (23 °F) to 55°C (131 °F) Relative humidity: Long-term operation: 5% to 85% Short-term operation: 5% to 90%
