DWDM OptiXtrans E6608T Huawei Telecom Equipment Transmission OSN 1800 II TP

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	OptiXtrans E6608T

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

OptiXtrans E6608T Dimensions:	88.1 Mm X 220 Mm X 442 Mm	Maximum Rate Per Channel:	200 Gbit/s
Name:	Huawei Telecom Equipment	Item:	Dwdm Huawei Osn 9800
Product:	Huawei 9800 Dwdm	Installation Mode:	19-inch Cabinet
Highlight:	OptiXtrans E6608T Huawei Telecom Equipment , DWDM Huawei Telecom Equipment , Dwdm Huawei Osn 9800

Product Introduction

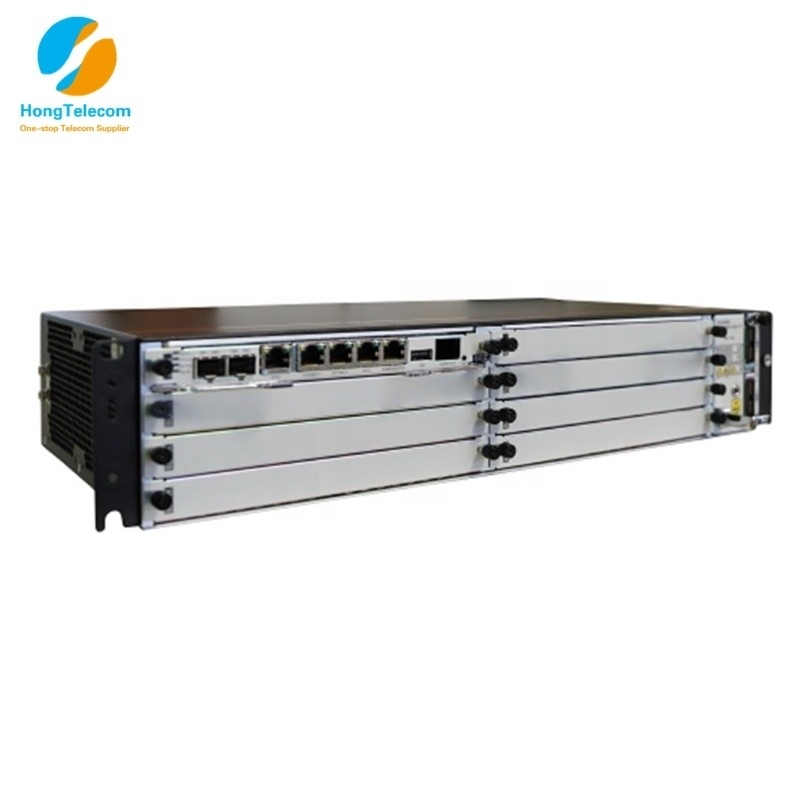

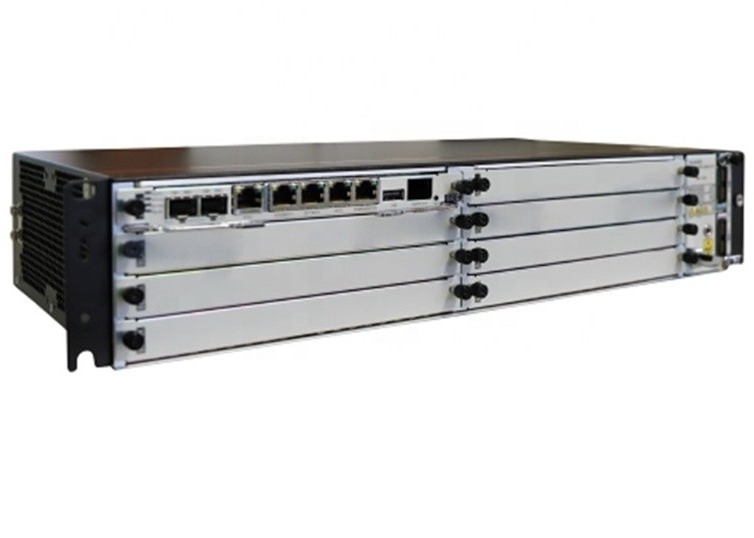

Product Appearance

The huawei OptiXtrans E6608T

Product Specifications

Subrack dimensions (mm)	88.1 mm x 220 mm x 442 mm (excluding handle)
Installation mode	* 19-inch cabinet * ETSI 300 mm deep cabinet, such as A63B, and N63B
Number of service board slots	DC-powered chassis: 7 AC-powered chassis: 5
Max. number of wavelengths	* DWDM: 80 wavelengths * CWDM: 8 wavelengths
Center wavelength range	* DWDM: 1529.16 nm to 1560.61 nm (C Band, ITU-T G.694.1) * CWDM: 1471 nm to 1611 nm (S+C+L Band, ITU-T G.694.2)
Max. rate per channel	200 Gbit/s
Line rate	2.5 Gbit/s, 10 Gbit/s, 100 Gbit/s, and 200 Gbit/s
