DWDM device ZTE M820 MC-C-DCM Tray ZTE DCM Tray

DWDM device ZTE M820 MC-C-DCM Tray ZTE DCM Tray

  • DWDM device ZTE M820 MC-C-DCM Tray ZTE DCM Tray
DWDM device ZTE M820 MC-C-DCM Tray ZTE DCM Tray
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: ZXMP M820
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Item Name: MC-C-DCM Tray Support: OTN,ROADM,WASON,PIC And L2 Functions Of Exchange

Contact Us
DWDM device ZTE M820 MC-C-DCM Tray ZTE DCM Tray 0

DWDM device ZTE M820 MC-C-DCM Tray ZTE DCM Tray


WE CAN OFFER ALL BOARDS OF  ZTE ZXMP M820 :

MC-C-Rack
ZTE Rack
MC-C-WDM Subrack
MC-C-WDM
MC-C-SFANA
MC-C-Adaption Frame
MC-C-Blank Panel
MC-C-SNP
MC-C-SCC
MC-C-CSU
MC-C-CSUB
MC-C-SPWA
ZTE SPWA
MC-C-SPWA SFP
MC-C-M1PWE
MC-C-SEIA1
MC-C-SEIA2
MC-C-M3SEIA1
MC-C-M3SEIA2
MC-C-M1EIC
MC-C-SOSC
MC-C-M2SOSCB
MC-C-M1TIS
MC-C-SOSC SFP
ZTE SOSC SFP
MC-C-EOPM1

MC-C-EOPM4
MC-C-EOWM2
MC-C-SOP1
MC-C-SOP2
MC-C-SOPCS
MC-C-OMU08
MC-C-OMU16
MC-C-OMU40
MC-C-OMU
MC-C-ODU40
MC-C-OCI
MC-C-VMUX40
MC-C-SOAD4
ZTE SOAD4
MC-C-SSDMT
MC-C-SSDMR
MC-C-LACT
MC-C-LACG
MC-C-DRA
MC-C-EONA
MC-C-EONAH
MC-C-EOBAH
ZTE EOBAH
MC-C-SEOBA
ZTE SEOBA
MC-C-SEOPA

ZTE SEOPA
MC-C-DCU
MC-C-DCM10-2C
MC-C-DCM20-2C
MC-C-DCM40
MC-C-DCM60
MC-C-DCM80
MC-C-DCM100
MC-C-DCM
MC-C-DCM80-5C
MC-C-DCM100-5C
MC-C-DCM120-5C
MC-C-DCM240
MC-C-DCM2 Tray
MC-C-DCM Tray
Ring flange
MC-C-ASMA
MC-C-OTU
MC-C-SOTU
MC-C-SOTU2.5G
MC-C-SOTU10G
MC-C-EOTU10G
MC-C-EOTU
ZTE EOTU10G
ZTE EOTU
MC-C-EOTU10GB

ZTE EOTU10GB
MC-C-TD2C
MC-C-SRM42
MC-C-SRM41
MC-C-SDSA
ZTE SDSA
MC-C-FCA
ZTE FCA
MC-C-SMUBC
ZTE SMUBC
MC-C-SMUBL
MC-C-COM
MC-C-COMB
ZTE COMB
MC-C-CD2
MC-C-CQ2
MC-C-LS2
ZTE LS3
MC-C-LD2
MC-C-LQ2
MC-C-MOM2
ZTE MOM3
MC-C-MQA2
MC-C-MJA
MC-C-SFP-SX
MC-C-SFP

MC-C-SFP-LX
MC-C-SFP-LH1
MC-C-SFP-LH2
MC-C-SFP-ZX
MC-C-SFP-I16
MC-C-SFP-S4.1
MC-C-SFP-S16.1
MC-C-SFP-L16.1
MC-C-SFP-L16.2
ZTE XFP module
XFP module
DWDM module
MC-C-TST3
ZTE TST4
MC-C-MQT3
ZTE MQT4
MC-C-M2TS4
ZTE M2TS5
MC-C-M2MX2
MC-C-PDU
ZTE PDU
MC-C-WSUA
MC-C-WSUA/E4
MC-C-WSUA/E9
MC-C-WSUD
ZTE WSUD
MC-C-WSUD/E9

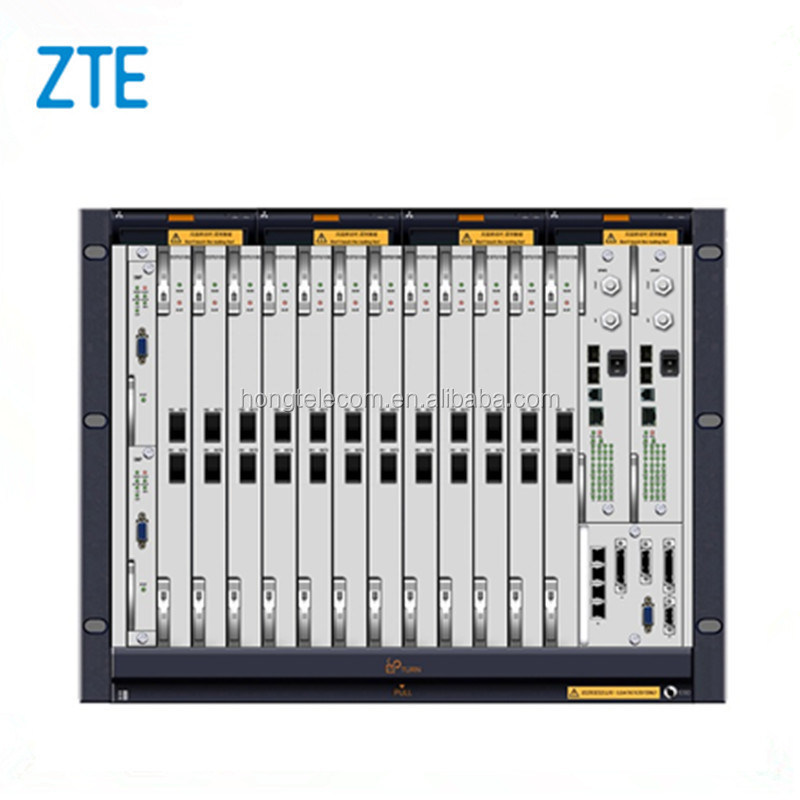

ZXMP M820 is the iOTN series of Metro OTN products, with a variety of service access, service scheduling, multi-level system smooth upgrade features, to provide comprehensive protection program, flexible, mature, support OTN, ROADM, WASON, photoelectric integration (PIC) exchange function and L2.

DWDM device ZTE M820 MC-C-DCM Tray ZTE DCM Tray 2
Features

1 system capacity : Support 80/96 x 10G, 80/96 40G, 80 x 100G, support for modular upgrade X.

2 Excellent 100G performance
100G system supports the use of coherent detection of PM-QPSK coding technology, support SD-FEC, B2B OSNR tolerance index is excellent, the use of advanced DSP processing technology, the dispersion tolerance of + 70000 ps/nm, PMD tolerance 60ps. Support for more than 5000 kilometers of non electric relay transmission, saving investment, easy operation and maintenance.

3 dimensional flow grooming sub frame
1) Support 2-9 dimensional ROADM, providing wavelength level cross scheduling function;
2) A centralized OTN ODU0/1/2/2e/3/4/flex cross system supporting cross particles;
3)Support L2 switching system, providing L2 layer wire speed forwarding, convergence, QinQ, L2 Qos and other functions;
4)To realize the intelligent scheduling of the traffic from the electric layer to the optical layer, and improve the flexibility of the network.

4 adaptive multi service access
1) Support 100M-100G any service access: STM-N, FE/GE/10GE/40GE/100GE, OTU1/2/3/4, DVB, ESCON, FC and other services access;
2) Universal service access single board, to meet the needs of the operator a variety of business hybrid transmission.

5 high integration PIC single frame scheme
1) The single frame can realize the functions of service access, service cross scheduling, hop, optical amplification, clock time processing and transmission;
2) Using PIC technology, lower power consumption, more convenient maintenance, short distance (less than 30km) without the optical amplifier, the true realization of the convergence layer site solution.

6 support WASON intelligent control plane
Support GMPLS protocol based on WASON control plane, automatic discovery, automatic routing and signaling can be realized and cyber source topology automatic switching function, and the traffic path automatic establishment and rapid end to end service configuration, traffic grooming, traffic control and other functions. Enhance the survivability of the network and improve the utilization of network resources.

7 full telecom network protection
Based on ZTE in the field of optical network protection for many years of engineering practice and strong R & D strength, support fiber level, wavelength level and L2 level and other protection:
1)Fiber level: Line 1 + 1 protection, recovery with 1+1 protection;
2)Optical channel: 1 + 1 optical channel protection;
3)L2 layer: ESR protection.

8 system smooth upgrade
1)Support 10G system to 100G system smooth upgrade;
2)Support for smooth upgrades from 40 to 80, and from 48 to 96;


9 support time synchronization
1) Support the transmission of 1588V2, support synchronous Ethernet transmission, strong support 3G and LTE deployment.
2)High reliability system architecture
3)Support the main control unit, power module unit, cross unit and sub frame cascade unit 1+1 hot backup, fully realize the high reliability design of sub frame level and sub frame level.

10 high integration and low power design
Single cabinet to achieve 80 wave access, effectively reduce the equipment area, significantly reduce operating costs.

11 system intelligent management
1) Support APO automatic performance optimization, to maintain the best system performance, automatically adapt to changes in environmental parameters;
2) Provide IWF centralized wavelength control patented technology to ensure the stability of the wavelength in the 50GHz interval system;
3)ESC/OSC monitoring channel support OSPF protocol, realizing network automatic discovery, automatic routing configuration function.
