Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |

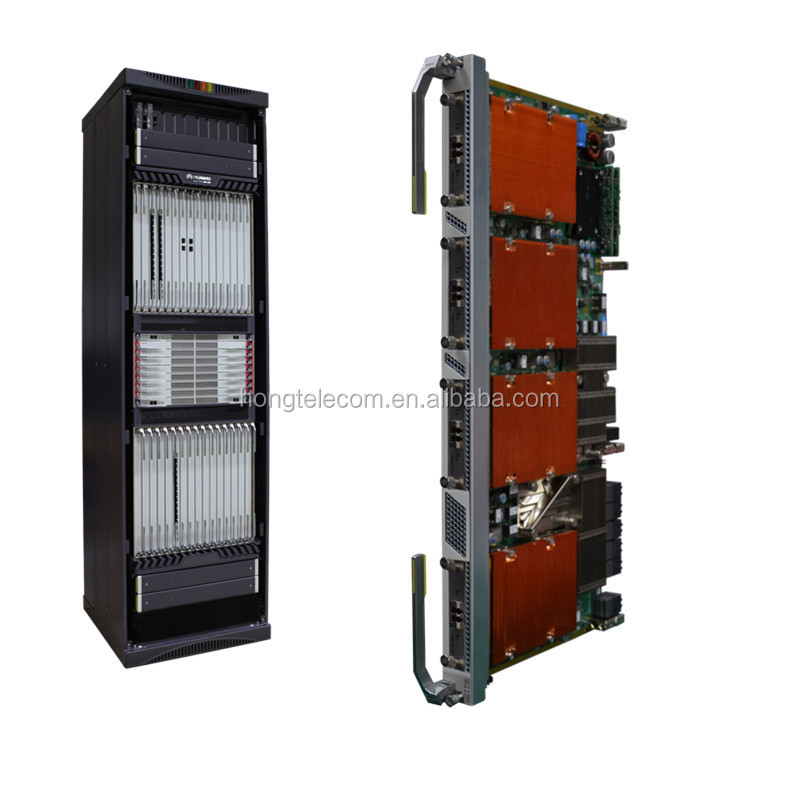

| Model Number: | OSN 9800 U64 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Model: | TNS2N404C01 | OSN 9800 U64 Dimensions: | 2200x600x600mm(with Cabinet) |
|---|---|---|---|
| OSN 9800 U32 Dimensions: | 1900x498x295mm | OSN 9800 U16 Dimensions: | 847x442x295mm |
| OSN9800 U64 Installation Rack: | ETSI 600mm Rack | OSN9800 U32 Installation Rack: | ETSI 300/600mm Rack |
| OSN9800 U16 Installation Rack: | ETSI/19 Inch Rack | Power Supply: | -48VDC/-60VDC |
| Rate Per Channel (Max.): | 100G, 200G, 400G, 1T, 2T | Service Types Supported: | SDH, SONET, Ethernet, SAN, OTN, Video |
TNV1T130 TNV1T120S TNV1T210 TNV2T210 TNV2T220 TNV3T210 TNV3T220 TNV3T230 TNV1T302 TNV2T302 TNV1T401 TNV3T401 TNV1T402 TNV3T402 TNV2T404 TNV3T404 TNV2T220E TN12D40 TN12M40 TN12M40V TN11ITL06 TN13FIU TN16FIU TN52DAP TN52DAPXF TN13OAU1 TN13OBU1 TN11SRAU | TNV2N220 TNU2N401 TNU3N401 TNV2N401 TNU5N401 TNU2N402 TNU3N402 TNV2N402 TNU5N402 TNU4N404 TNU5N404 TNU1N401P TNU2N402P TNU1N501 TNU2N501 TNU1N601 TN51MCS0816 TN12TD20 TN13TM20 TN15TM20 TN17WSMD4 TN15WSMD9 TN15DWSS20 TN51DWSS20 TN52DWSS20 | TNV1U210 TNU2U401 TNV2U401 TNU3U401 TNU4U401 TNU4U402 TNV2G210 TNV2G220 TNU1G404 TNU1G402 TNV1E124 TNV1E401 TNV1E302 TNV1E212 TNV1E208 TNV1EC116 TNV1EC404 TN11AST2 TN51LMU TN13ST2 TN13DCP TN13OLP TN11QCP TN12OPM8 TN15OPM8 TN13VA4 | TNV1S216 NP400NP400E TNV1SXCL TN12LDX TN13LQM TN17LSC TN18LSC TN11LDC TN17LSCM TN15LSXL TN14LSX TN15LTX TN17LTX TN55NO2 TN53NQ2 TN54NS4 TN97ASE TN97D48 TN97ERPC TN97M48V TN97OAU2 TN97ITL04 TN97OPM8 TN97TM20 TN96WSD9 TN96WSM9 |
The Huawei OptiX OSN 9800 Specifications:
Specifications | OSN 9800 U16 | OSN 9800 U32 | OSN 9800 U64 | ||||
Dimensions (HxWxD) | 847x442x295mm | 1900×498x295mm | 2200x600x600mm(with cabinet) | ||||
Number of Service Slots | 14 | 32 | 64 | ||||
Switching Capability | Optical | Up to 20-degree C-D-C-G ROADM | |||||
Electrical | 5.6Tbit/s universal switching | 6.4 /12.8Tbit/s universal switching | 12.8/25.6Tbit/s universal switching | ||||
Number of Ports | Max OTU4 Ports | 28/56 | 64/128 | 128/256 | |||
Max 100GE Ports | 28/56 | 64/128 | 128/256 | ||||
Max OTU3 Ports | 28 | 64 | 128 | ||||
Max 40GE Ports | 28 | 64 | 128 | ||||
Max OTU2 Ports | 280 | 640 | 1280 | ||||
Max 10G Ports | 280 | 640 | 1280 | ||||
Max GE/2.5G Ports | 420 | 960 | 1920 | ||||
Max OTUC2 Ports | 14 | 32 | 64 | ||||
Max OTUC4 Ports | 7/14 | 16/32 | 32/64 | ||||
Channel Spacing | 50/100GHz fixed grid for 40/80-ch | ||||||
Flex-grid | |||||||
Wavelength Range | DWDM: 1529.16 nm to 1560.61 nm (C Band, ITU-T G.694.1) | ||||||
Rate per Channel (Max.) | 100G, 200G, 400G, 1T, 2T | ||||||
Service Types Supported | SDH, SONET, Ethernet, SAN, OTN, video | ||||||
Topology | Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring and mesh | ||||||
Redundancy and Protection | Equipment | 1+1 power input protection, 1+1 fan protection, M:N switch board protection, 1+1 controller protection | |||||
Network | OTN: Optical line protection, client 1+1 protection, ODUk SNCP, tributary SNCP, intra-board 1+1 protection,LPT, ASON/GMPLS PKT: PW APS, Tunnel APS, LAG | ||||||
Optical Power Management | ALS, AGC, ALC, APE, IPA | ||||||
Synchronization | IEEE 1588v2, Sync-E | ||||||
2Mbit/s or 2MHz (with the SSM function), ITU-T G.703-compliant external clock source | |||||||
External clock source (1PPS+TOD) | |||||||
ASON/GMPLS | Automatic network discovery | ||||||
ODUk/λ level protection and restoration | |||||||
5-Level SLA (Service Level Agreement) provisioning | |||||||
End-to-end service configuration | |||||||
Shared Risk Link Group (SRLG) | |||||||
Traffic engineering | |||||||
T-SDN | Automation, IP+Optical , BOD | ||||||
Installation Rack | ETSI/19 inch rack | ETSI 300/600mm rack | ETSI 600mm rack | ||||
Heat Dissipation | Fan | ||||||
Power Supply | -48VDC/-60VDC | ||||||
Operation Environment | Temperature: Long-term operation: 5°C to 40°C Short-term operation: -5°C to 45°C | ||||||
Relative humidity: Long-term operation: 5% to 85% Short-term operation: 5% to 90% | |||||||
