Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | ME0D0LAXXH71 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Products Status: | Stock | Dimensions (H X W X D): | 40.1 Mm X 399.2 Mm X 535.6 Mm |
|---|---|---|---|
| Typical Power Consumption: | 280.2 W | Typical Heat Dissipation: | 909.1 BTU/hour |
| Weight: | 8.2 Kg | Description: | 10 X 10GBase LAN/WAN-SFP+ Broadband Service Unit Integrated E |
| Description2: | BSUI-120-E | ||
| High Light: | 03057090 Huawei Telecom Router,ME0D0LAXXH71 Huawei Telecom Router,ME0D0LAXXH71 |
||

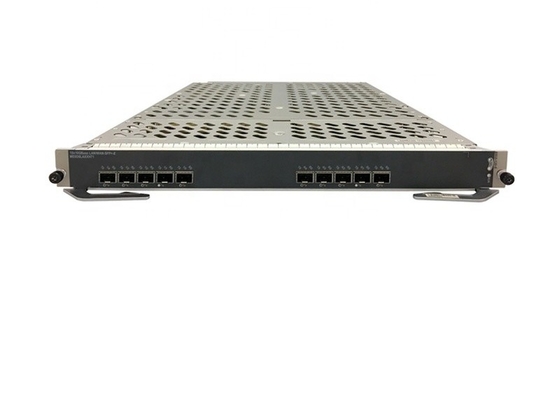

Board name silkscreen: BSUI-120-E10x10GBase LAN/WAN-SFP+ -E
Description: 10-Port 10GBase LAN/WAN-SFP+ Broadband Service Unit Integrated E(BSUI-120-E)
BOM: 03057090
Model: ME0D0LAXXH71
|
BSUF-100/MSUF-100 Flexible Line Process Card
|
|
|
||
|
03054635
|
ME0DBSUFA070
|
Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots)
|
||
|
03054637
|
ME0DMSUFA070
|
Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)
|
||
|
03032GLB
|
ME0D0E1NCB70
|
1-Port 100GBase-CFP2 Flexible Card(BP100)
|
||
|
03032HGH
|
ME0D0E1NDB70
|
1-Port 100GBase-QSFP28 Flexible Card(BP100)
|
||
|
03030QDG
|
ME0D0L6XXB7H
|
6-Port 10GBase LAN/WAN-SFP+ Flexible Card(BP100)
|
||
|
03030PYR
|
ME0D0L5XXB7H
|
5-Port 10GBase LAN/WAN-SFP+ Flexible Card(BP100)
|
||
|
03031XQA
|
ME0D0L5XXE8E
|
5-Port 10GBase LAN/WAN-SFP+ Flexible Card E(BP120-E)
|
||
|
03030PYJ
|
ME0D0EFGFB7H
|
24-Port 100/1000Base-X-SFP Flexible Card(BP51)
|
||
|
03031XQM
|
ME0D0EFGFE7E
|
24-Port 1000Base-X-SFP Flexible Card E(BP52-E)
|
||
|
10G SFP+ Optical Transceiver
|
|
|
||
|
S4017482
|
OSX040N03
|
Optical Transceiver(SFP+,850nm,10Gb/s,-7.3~-1dBm,-9.9dBm,LC, MM,0.3km)
|
||
|
S4017483
|
OSX001002
|
Optical Transceiver(SFP+,1310nm,10Gb/s,-8.2~0.5dBm,-12.6dBm,LC,SM,10km)
|
||
|
34061042
|
OSX010N13
|
XFP SFP+ Transceiver-SFP+-1310nm-10G/1G--8.2dbm-0.5dbm-Single-mode-14.4dbm-LC-10km
|
||
|
S4017484
|
OMXD30002
|
Optical Transceiver(SFP+,1550nm,9.95~11.1Gb/s,-4.7~4dBm,-14.1dBm,LC,SM,40km)
|
||
|
02311YEB
|
OSX040N14
|
Optical Transceiver(SFP+,1310nm,10Gb/s,-2dBm~4dBm,-20dBm,LC,SM,40km)
|
||
|
02310PVU
|
OSX080N04
|
Optical Transceiver(SFP+,1550nm,9.953~10.3125Gb/s,0~4dBm,-24dBm,LC,SM,80km)
|
||
|
34060687
|
OSX070002
|
Optical Transceiver-SFP+-1471nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km
|
||
|
34060688
|
OSX070003
|
Optical Transceiver-SFP+-1491nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km
|
||
|
34060686
|
OSX070001
|
Optical Transceiver-SFP+-1511nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km
|
||
|
34060689
|
OSX070004
|
Optical Transceiver-SFP+-1531nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km
|
||
|
34060690
|
OSX070005
|
Optical Transceiver-SFP+-1551nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km
|
||
|
34060691
|
OSX070006
|
Optical Transceiver-SFP+-1571nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km
|
||
|
34060692
|
OSX070007
|
Optical Transceiver-SFP+-1591nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km
|
||
|
34060693
|
OSX070008
|
Optical Transceiver-SFP+-1611nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km
|
||
|
100G Optical Transceiver
|
|
|
||
|
S4017456
|
OSN010N04
|
Optical transceiver,CFP,1295/1300/1304/1309nm,103.125Gbps,-4.3dBm,4.5dBm,-8.6dBm,LC,SMF,10km
|
||
|
02310WUS
|
OSN040N02
|
High Speed Transceiver,CFP,1310nm Band,103.125Gb/s,-2.9dBm,2.9dBm,-21.4dBm,Straight LC,SMF,40km,OMA OPTICAL POWER,100GBASE-ER4
|
||
|
02311JNT
|
OSN080N10
|
High Speed Transceiver,CFP,1310nm,103.125Gb/s,9dBm,12.5dBm,-24dBm,Straight LC,SMF G.652,80km,100GBASE
|
||
|
S4017457
|
OSN010003
|
Optical Transceiver,CFP,850nm,10*10.3125Gb/s,-7.6dBm,2.4dBm,-5.4dBm,mpo,MM,0.1km
|
||
|
02311LYG
|
OMND10N12
|
High Speed Transceiver,CFP2,850nm,10*10Gb,103.125Gb/s,-7.6dBm,1dBm,-9.5dBm,MPO,MM,0.1km
|
||
|
02310WUR
|
OSN010N09
|
High Speed Transceiver,CFP2,4*25Gb/s(1310nm Band),103.125Gb/s,-4.3dBm,4.5dBm,-10.6dBm,LC straight,SMF,10km
|
||
|
02311FAP
|
OSN040N03
|
High Speed Transceiver,CFP2,1310nm,103.125Gb/s,-2.9dBm,2.9dBm,-21.4dBm,Straight LC,SMF,40km,OMA,100GBASE-ER4
|
||
|
02311NTY
|
OMND10N13
|
High Speed Transceiver,QSFP28,850nm,100G,-8.4dBm,2.4dBm,-10.3dBm,MPO,MM,0.1km,OM4
|
||
|
02311QDH
|
OSN020N15
|
High Speed Transceiver,QSFP28,1310nm,4*25GBase,-6.5dBm,2.5dBm,-9.8dBm,LC/PC,2km (100GBASE-CWDM4)
|
||
|
02312BSS
|
OSN010N24
|
High Speed Transceiver,QSFP28,1310nm,100G,-4.3dBm,4.5dBm,-8.6dBm,LC,SMF,10km
|
||
The ME60 is a multi-service control gateway series launched by Huawei. ME60s are mainly used as broadband service access BRAS nodes and IP/MPLS network service-provisioning nodes. The ME60 uses Huawei-developed Solar series NP chips. In addition, the ME60 uses the CLOS distributed multilevel switching architecture, and leverages distributed hardware-based forwarding and non-blocking switching to achieve excellent line-speed forwarding performance, superb scalability, comprehensive QoS, and strong service processing capabilities. Based on an industry-leading 2 Tbit/s platform, the ME60 is compatible with the line cards already installed on existing networks, which helps to maximize the protection of customer investment. The ME60 is a high-performance service management and provisioning platform, which fully meets the requirements of a variety of service-provisioning modes, carries multiple services simultaneously, and ensures that a wide range of telecommunication services run stably and reliably. By using the ME60 and corresponding solutions, operators can construct a future-oriented intelligent broadband IP network with greatly reduced multi-service network construction and O&M costs.
The ME60 has the following table Specifications:
|
Attribute
|
ME60-X16A
|
ME60-X8A
|
ME60-X16
|
ME60-X8
|
ME60-X3
|
||||
|
Switching Capacity
|
50.32 Tbit/s
|
25.16 Tbit/s
|
12.58 Tbit/s
|
7.08 Tbit/s
|
1.08 Tbit/s
|
||||
|
Forwarding Performance
|
11,520 Mpps
|
5,760 Mpps
|
5,760 Mpps
|
2,880 Mpps
|
360 Mpps
|
||||
|
Number of Slots
|
22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs
|
12 slots, including 8 LPUs, 2 SRUs, and 2 SFUs
|
22 slots, including 16 LPUs, 2 SRUs, and 4 SFUs
|
11 slots, including 8 LPUs, 2 SRUs, and 1 SFU
|
5 slots, including 3 LPUs and 2 SRUs
|
||||
|
Dimensions
(H x W x D)
|
1,778 mm x 442 mm x 650 mm (40U)
|
934 mm x 442 mm x 650 mm (21U)
|
1,420 mm x 442 mm x 650 mm (32U)
|
620 mm x 442 mm x 650 mm (14U)
|
175 mm x 442 mm x 650 mm (DC 4U);
220 mm x 442 mm x 650 mm (AC 5U)
|
||||
|
Maximum Power Consumption
|
7,220W (BSUF-240)
9,040W (BSUF-480)
|
4,110W (BSUF-240)
4,770W (BSUF-480)
|
4,610W (BSUF-100)
6,210W (BSUF-240)
|
2,340W (BSUF-100)
3,220W (BSUF-240)
|
920W (BSUF-100)
|
||||
|
Full Configuration Weight
|
356 kg
|
190 kg
|
279 kg
|
136 kg
|
DC: 42 kg (100G)
AC: 52 kg (100G)
|
||||
|
Interface Types
|
100 GE-WAN/LAN
10 GE-WAN/LAN GE/FE |
|
|
|
|
||||
|
BRAS
|
User access protocols: PPPoE, IPoE, 802.1X, and ND access
User authentication protocols: PAP, CHAP, MSCHAP, RADIUS, and HWTACACS User billing protocols: RADIUS, HWTACACS, and COPS User authorization protocols: RADIUS, HWTACACS, and COPS Policy protocols: COPS, COA |
|
|
|
|
||||
|
L2TP
|
Maximum number of sessions supported: 64K per slot and 128K per device
Maximum number of tunnels supported: 16K per slot, 16K per LAC device, and 48K per LNS device |
|
|
|
|
||||
|
IPv4
|
Supports the static routing protocol and dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP-4. All ports support line-rate forwarding even in complex routing environments, for example, when route flapping occurs
|
|
|
|
|
||||
|
IPv6
|
Supports the following:
IPv4/IPv6 dual stacks A variety of IPv4-to-IPv6 transition technologies: Manually configured tunnels, IPv6 over IPv4 tunnels, GRE tunnels, IPv4 over IPv6 tunnels, and IPv6 Provider Edge (6PE) IPv6 static routes and dynamic routing protocols, such as BGP4/BGP4+, RIPng, OSPFv3, and IS-ISv6 IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, static IPv6 DNS, IPv6 DNS server, TFTP IPv6 client, and IPv6 policy-based routing Network Address Translation IPv6-to-IPv4 (NAT64), NAT44 and Dual-Stack Lite (DS-Lite) Internet Control Message Protocol Version 6 (ICMPv6) Management Information Base (MIB), User Datagram Protocol Version 6 (UDP6) MIB, TCP6 MIB, and IPv6 MIB |
|
|
|
|
||||
|
MPLS/MPLS VPN
|
Supports the following:
MPLS TE and MPLS/BGP VPN in compliance with RFC 2547bis Inter-AS Option A, inter-AS Option B, and inter-AS Option C Integration with Internet services Martini MPLS L2VPN and Kompella MPLS L2VPN VPLS and VLL Heterogeneous interworking Multicast VPN |
|
|
|
|
||||
