Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | S2700 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Products Status: | Stock | Ports: | ≥ 48 |
|---|---|---|---|
| Transmission Rate: | 10/100Mbps | Function: | LACP, POE, QoS, SNMP, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex | Switch Capacity: | / |
| Port: | Shenzhen |
48 Ethernet 10/100 Mbps ports
4 Gigabit Ethernet SFP ports uplinks
IPv6 protocol, static IPv6 routes, 802.1 X authentications
Forwarding performance: 13.2 Mpps

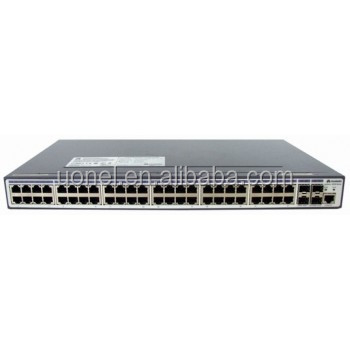

S2700-52P-EI-AC is the new generation layer 2 intelligence switch. S2700-52P-EI-AC integrates 48 FastEthernet ports with 4 Gigabit Ethernet SFP uplink ports. S2700-series switch utilizes cut-edging switching technologies and versatile looking platform software. The switch implements easy installation, configuration, monitoring and troubleshooting, greatly reduces initial installation and configuration costs, improves upgrade efficiency and lowers engineering costs.
S2700 uses iStack technology to virtualize multiple switches into a single one to ease user management and configuration and expand the system switching capacity. By utilizing stack features enhances reliability and scalability, moreover, this greatly reduces system operation and maintenance costs. S2700 series intelligence switch can be used for various enterprise network areas to help enterprises to build high performance, reliable network environment.
| Product Description | Quidway S2700-52P-EI-AC - switch - 48 ports - Managed - desktop |
|---|---|
| Device Type | Switch - 48 ports - Managed - stackable |
| Enclosure Type | Desktop |
| Interfaces | Gigabit Ethernet |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100 + 2 x Gigabit SFP + 2 x SFP |
| Performance | Forwarding performance : 13.2 Mpps |
| Capacity | Virtual interfaces (VLANs) : 4000 |
| MAC Address Table Size | 8K entries |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv6 routing, MLD |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Features | VLAN support, IGMP snooping, packet filtering, port mirroring, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), Multicast Suppression, MLD snooping, IP-MAC binding |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) | 44.2 cm x 22 cm x 4.4 cm |
| Weight | 3 kg |
| General | |
|---|---|
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Capacity | Virtual interfaces (VLANs) : 4000 |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
| Device Type | Switch - 48 ports - Managed - stackable |
| Enclosure Type | Desktop |
| Features | VLAN support, IGMP snooping, packet filtering, port mirroring, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), Multicast Suppression, MLD snooping, IP-MAC binding |
| Interfaces | Gigabit Ethernet |
| MAC Address Table Size | 8K entries |
| Performance | Forwarding performance : 13.2 Mpps |
| Ports | 48 x 10/100 + 2 x Gigabit SFP + 2 x SFP |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv6 routing, MLD |
| Subtype | Gigabit Ethernet |
| Dimensions & Weight | |
|---|---|
| Depth | 22 cm |
| Height | 4.4 cm |
| Weight | 3 kg |
| Width | 44.2 cm |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -5 °C |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 2 x SFP (mini-GBIC) ¦ 48 x 100Base-TX - RJ-45 ¦ 1 x console - RJ-45 - management ¦ 2 x SFP (mini-GBIC) |
| Power | |
|---|---|
| Power Consumption Operational | 38 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
