| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | S1700 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Products Status: | Stock | Ports: | ≥ 48 |
|---|---|---|---|
| Transmission Rate: | 10/100Mbps | Function: | LACP, POE, QoS, SNMP, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex | Switch Capacity: | 4Gbps |

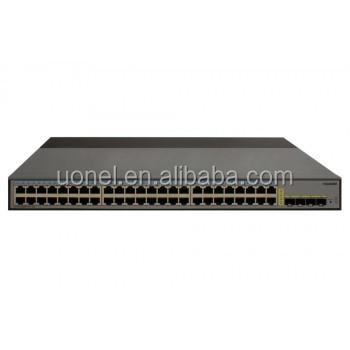

All S1700 series switches are based on a fan-free design, which reduces power consumption and noise.
The S1700 supports Energy Efficient Ethernet (EEE), which enables the switch to enter a power-saving mode when traffic is light.
The S1700 can adjust the power output for transmissions based on the cable length. It can also set any ports that are not transmitting traffic to sleep mode.
All S1700 ports provide Layer 2 wire-speed forwarding capabilities to ensure non-blocking packet forwarding. S1700 models provide optical and electrical GE uplink ports, which facilitate user access and are cost-effective.
The S1700 MAC address table supports up to 8 K of MAC addresses, making it easy to expand networks and deploy new services. The S1700 support layer 3 static routing-forwarding which include IPv4 and IPv6 protocols.
The S1700 is easy to manage and maintain, being equipped with a one-key operation button on the front panel.
Web-managed S1700 models come with a web network management system, making it easy to configure switches.
SNMP-based S1700 models allow for the use of an SNMP-based NMS for centralized configuration and management.
SNMP-based S1720 models can support CLI and console port configuration.
The S1700 provides a range of security features, including 802.1x, RADIUS, Portal and NAC. The S1700 also supports packet filtering based on MAC addresses or ports in order to defend against hackers and virus attacks.
The S1700 provides LACP, STP, RSTP, and MSTP functions to implement link aggregation and backup. SNMP-based switches support up to 64 MSTP instances for flexible networking.
| Type | Web-managed Switch | SNMP-based Switch | |||
|---|---|---|---|---|---|
| Model | S1728GWR-4P | S1700-28FR-2T2P-AC | S1700-52FR-2T2P-AC | S1700-28GFR-4P-AC | S1700-52GFR-4P-AC |
| Downlink port | 24 Ethernet 10/100/1000 ports | 24 Ethernet 10/100 ports | 48 Ethernet 10/100 ports | 24 Ethernet 10/100/1000 ports | 48 Ethernet 10/100/1000 ports |
| Uplink port | 4 Gig SFP | 2 Ethernet 10/100/1000 ports and 2 Gig SFP | 2 Ethernet 10/100/1000 ports and 2 Gig SFP | 4 Gig SFP | 4 Gig SFP |
| MAC address table | 8K MAC | ||||
| Dimensions mm(W×D×H) | 442×220×43.6 | ||||
| Input voltage | 100 V to 240 V AC, 50/60 Hz | ||||
| EEE | Supported | NA | Supported | ||
| Power consumption | <15W | <25W | <35W | <30W | <55W |
| Operating temperature | 0°C to 45°C | ||||
| Humidity (non-condensing) | 5% ~ 90% | 10% to 90% | |||
| Heat dissipation | Fan-free natural heat dissipation | Fan-free natural heat dissipation | Heat dissipation using fans supporting intelligent speed adjustment | ||
