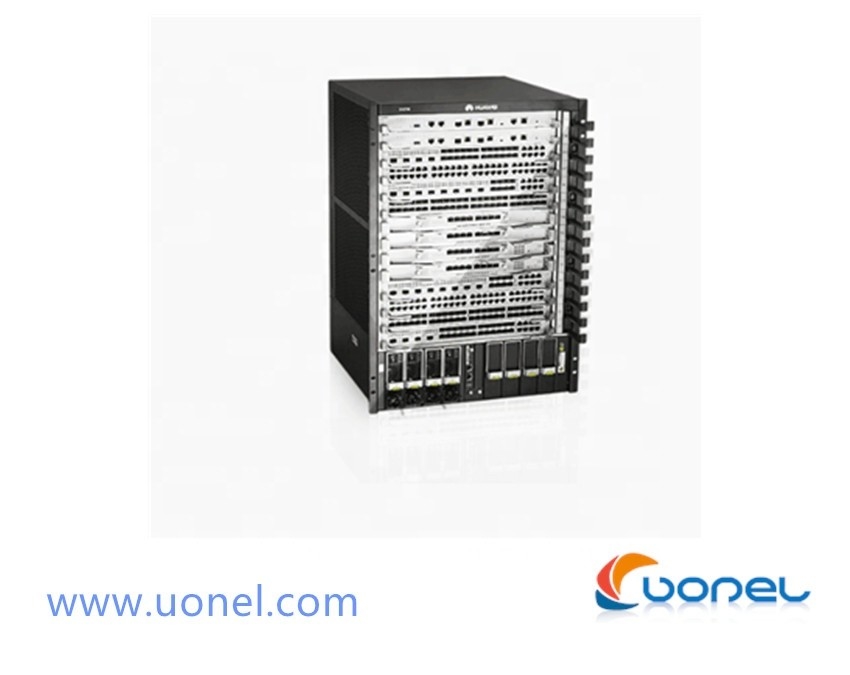

S12700 Series for Agile Switches S12708 switch

Name: S12700 Series for Agile Switches S12708 switch
Brand: Huawei
SKU: S12708
Availability: InStock
ISBN: 14066948

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	S12708

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Products Status:	Stock	Ports:	24
Transmission Rate:	10/100/1000Mbps	Function:	LACP, POE, QoS, SNMP, VLAN Support
Communication Mode:	Full-Duplex & Half-Duplex	Switch Capacity:	128Gbps
Product Name:	S12708	Model:	S12708
Type:	S12708	Name:	S12708

S12700 Series for Agile Switches S12708

S12700 Series Agile Switches

S12700 series agile core switches are designed for next-generation campus networks. The S12700 series uses a fully programmable architecture to meet fast-changing service needs, and allow new services to be flexibly and quickly provisioned in six months.

The S12700 series provides high-performance Layer 2/Layer3 switching services, supports millions of hardware entries, and can meet campus network evolution over the next 10 years.

The S12700 series has built-in large-capacity WLAN AC functionalities, achieving wired and wireless convergence and eliminating the capacity bottleneck of ACs.

Specifications

Specifications	S12704	S12708	S12712
Switching Capacity	4.88/10.96 Tbit/s	12.32/27.04 Tbit/s	17.44/37.28 Tbit/s
Packet Forwarding Rate	3,120/4,560 Mpps	6,240/9,120 Mpps	9,120/12,960 Mpps
MPU Slots	2	2	2
SFU Slots	2	4	4
Service Card Slots	4	8	12
CSS2	1+N MPU backup in a cluster Up to 1.92 Tbit/s cluster bandwidth, 4 us inter-chassis transmission latency
Wireless Network Management	Native AC AP access control, AP region management, and AP profile management Radio profile management, unified static configuration, and centralized dynamic management Basic WLAN services, QoS, security, and user management
User Management	Unified user management 802.1x, MAC, and Portal authentication Charging based on traffic volume and online duration User authorization based on user groups, domains, and time ranges
iPCA	Adds marks on service packets in order to measure the number of lost packets and packet loss ratios in real time with zero payload Measures the number of lost packets and packet loss ratios at the network and device levels on Layer 2 and Layer 3 networks
SVF	Up to 4K clients (access switches and APs) virtualized into a single device 2-level AS structure Unified management on and non- devices
OpenFlow	Supports multiple controllers. Supports multi-level flow tables. Supports group tables. Supports meter tables. Confirms to Open Flow 1.3 standards.
Interoperability	VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP) For detailed interoperability certifications and test reports, click HERE.
