Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Max. LAN Data Rate: | 1000Mbps | With Modem Function: | NO |
|---|---|---|---|
| Standards And Protocols: | Wi-Fi 802.11ac | Wi-Fi Transmission Standard: | 802.11ac |
| Wired Transfer Rate: | 10000Mbps | 2.4G Wi-Fi Transmission Rate: | 600Mbps |
| Encryption Type: | WPA2-PSK | Products Status: | New, Stock |
| Type: | Wired | Application: | ENTERPRISE |
| Function: | FireWall, QoS, VPN | LAN Ports: | 16 |
| WAN Ports: | 2 | Port: | Shenzhen |

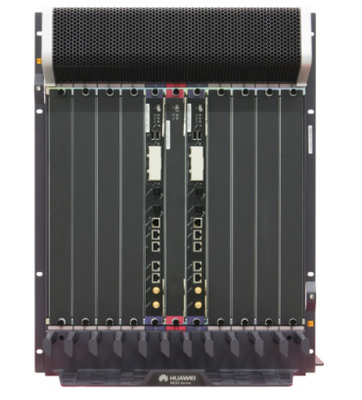

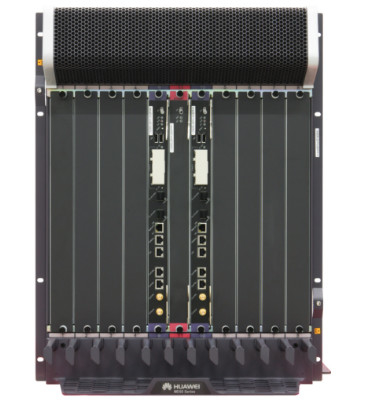

ME60 Series Multi Service Engine ME60-X8
High-capacity Broadband Remote Access Server (BRAS) with tightly integrated Hierarchical QoS and unified user access and management features.
Highly scalable with slots to provide various port types from 64 Kbit/s to 100 Gbit/s, up to 240 Gbit/s subscriber access line card. Supports up to 64K subscribers per Line Processing Unit (LPU), up to 256,000 subscribers per chassis.
Rich IPv6 support and industry’s largest capacity Carrier Grade NAT (GCG) service board enable smooth migration from IPv4 to IPv6 networking.
Table 1 Physical parameters of the ME60-X8
| Item | Specification | |
|---|---|---|
| Dimensions (H x W x D) | 620 mm x 442 mm x 650 mm (24.41 in. x 17.40 in. x 25.59 in.) (chassis main body dimensions) 620 mm x 442 mm x 770 mm (24.41 in. x 17.40 in. x 30.31 in.) (chassis dimensions including the chassis's front and rear assembly and cable racks) | |
| Installation position | N68E cabinet or a standard 19-inch cabinet or a 23-inch rack that complies with the North American standard | |
| Weight | Empty chassis | 25.8 kg (56.89 lb) |
| Full configuration (maximal) | 136 kg (299.88 lb) | |
| Integrated chassis | 43.2kg (95.26 1b) | |
| Typical power consumption | 3220W | |
| Heat dissipation | 10447.0 BTU/hour | |
| DC input voltage | Rated voltage | -48 V DC |
| Maximum voltage range | -38.4 V DC to -72 V DC | |
| AC input voltage | Rated voltage | 200 V AC to 240 V AC(220V) |
| System reliability | MTBF (year) | 21.91 |
| MTTR (hour) | 0.5 | |
| Ambient temperature | Long-term | 0°C to 45°C (32°F to 113°F) |
| Short-term | -5°C to 55°C (23°F to 131°F) | |
| Remarks | Limit of the temperature change rate: 30°C (86°F)/hour | |
| Storage temperature | -40°C to 70°C (-40°F to 158°F) | |
| Relative humidity | Long-term | 5% RH to 85% RH, no coagulation |
| Short-term | 5% RH to 95% RH, no coagulation | |
| Storage humidity | 5% RH to 95RH, no coagulation | |
| Long-term altitude | ≤ 4000 m (13123.2 ft). If the altitude is between 1800 meters (5905.44 ft) and 4000 meters, the operating temperature of the device must decrease by 1°Cyou for every 220 meters (721.776 ft) increase in altitude. | |
| Storage altitude | Lower than 5000 m (16404 ft) | |
The ME60-X8 uses a system architecture shown in Figure 2. In this architecture, the data plane, management and control plane, and monitoring plane are separated. This design helps to improve system reliability and allows each plane to upgrade separately.
The ME60-X8 provides the following system features:
Distributed hardware-based forwarding and fast service deployment
Compact structure to increase interface density
Normalized design of system components
Separation of the control channel, service channel, and monitoring channel to ensure non-blacking control channels and monitoring channels
Carrier-class high reliability and manageability
Shielding at the modular level to meet Electro Magnetic Compatibility (EMC) requirements
Hot-swappable boards, power modules, and fans
U-shaped air channels to improve system heat dissipation
Distributed power supply to enhance power supply capabilities for a single chassis
200 mm (7.87 in.) fans, and support for NEBS and ETSI
SRUs in 1:1 backup mode
SFUs in load balancing mode
Backup for key components such as power modules, fan modules, clocks, and management buses
Protection against incorrect insertion of boards
Queries about alarm prompts, alarm indications, running status, and alarm status of the voltage and ambient temperature
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
| Delivery Options | Estimated Delivery Time |
|---|---|
| DHL | 3-5 business days |
| Fedex | 3-5 business days |
| By Sea | 10-20 business days |
Notice:
Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:
Deliver to port:
Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.
Deliver to door:
Uonel will quote all destination charge prior once we have confirmed order.
Uonel is responsible for transporting goods to door after you have made the payment.
100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices
100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.
Free Technical Support:
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed product: 1 Year
The Support Contacts:
If your products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million products in stock.
Most of our technical engineers had work exprience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
