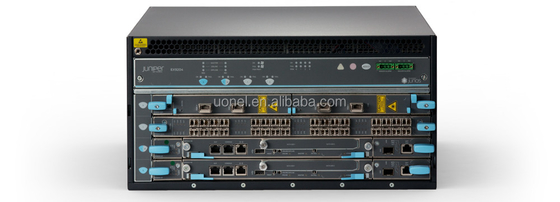

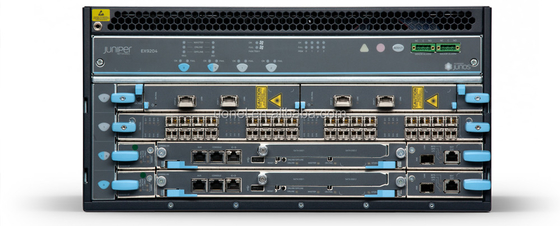

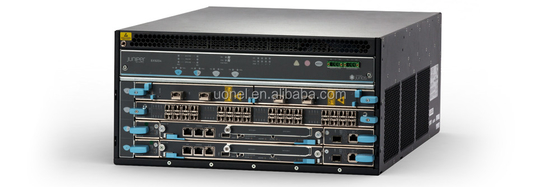

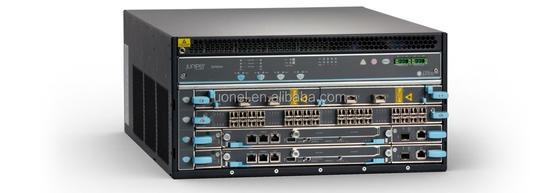

juniper EX9200 Flexibility and scalability for business agility and growth,Juniper switches
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
With Modem Function: Yes Standards And Protocols: Wi-Fi 802.11g
Encryption Type: WPA2-PSK Products Status: New, Stock
Type: Routers Application: ENTERPRISE
Function: Router, Router LAN Ports: 8
WAN Ports: 2 Color: Black

Overview

The EX9200 line of Ethernet switches provides a programmable, flexible, and scalable foundation for delivering mission-critical applications in enterprise campus and data center core environments.

EX9200 switches simplify the deployment of cloud applications, server virtualization, and rich media collaboration tools in enterprise campus and data center core and aggregation environments.

In the enterprise campus, the EX9200 enables collaboration and provides simple and secure access for the delivery of mission-critical applications. In the data center, it simplifies operations to align the network with fast-changing business requirements.

The EX9200 switches also serve as the foundation for the Junos Fusion Enterprise architecture, a new standards-based approach for creating an open, highly scalable switch fabric for the enterprise campus. Junos Fusion Enterprise dramatically simplifies campus deployments by collapsing the entire network into a single management point, with the EX9200 as its core. Junos Fusion Enterprise can also serve as the shared core for enterprise campus environments that have on-premise data centers.

Three EX9200 switches are available: the EX9204, EX9208, and EX9214. The EX9200 chassis deliver up to 240 Gbps (full duplex) per slot. A pass-through midplane design supports capacity of up to 13.2 Tbps for built-in migration to next-generation deployments. Any combination of 1GbE, 10GbE, and 40GbE interfaces can be used, and the switches include support for 100GbE cards when available.

Form factor
EX9204: 4-slot modular chassis
EX9208: 8-slot modular chassis
EX9214: 14-slot modular chassis
Access ports
N/A
Dimensions (W x H x D)
EX9204:
17.5 x 8.7 x 27.8 in (44.5 x 22.1 x 70.5 cm)
5 rack units
EX9208:
17.5 x 14 x 27.8 in (44.5 x 35.6 x 70.5 cm)
8 rack units
EX9214:
17.5 x 27.8 x 27.8 in (44.5 x 70.5 x 70.5 cm)
16 rack units
Backplane speed
EX9204: Up to 1.6 Tbps per chassis
EX9208: Up to 4.8 Tbps per chassis
EX9214: Up to 13.2 Tbps per chassis
Data rate
EX9200-40T: Up to 40 Gbps
EX9200-40F: Up to 40 Gbps
EX9200-32XS: Up to 240 Gbps
EX9200-4QS: Up to 120 Gbps
Throughput
Up to 240 Gbps per slot (full duplex) on all chassis
10/100/1000BASE-T port densities
N/A
10GBASE-X port densities
N/A
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities
EX9204: 12 (EX9200-4QS line card)
EX9208: 28 (EX9200-4QS line card)
EX9214: 48 (EX9200-4QS line card)
100GBASE C form-factor pluggable transceiver (CFP) port densities
EX9204: 6 using EX9200-2C-8XS line card (future)
EX9208: 10 using EX9200-2C-8XS line card (future)
EX9214: 20 using EX9200-2C-8XS line card (future)
Resiliency

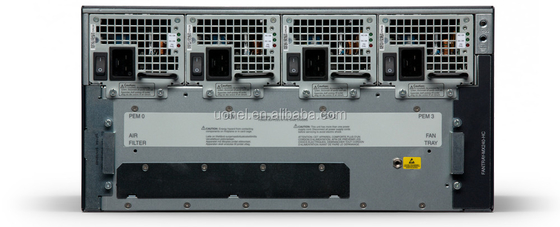

4 power supply bays on each chassis for N+1 or N+N redundancy; field-replaceable fan trays; redundant Routing Engines and switch fabrics; graceful Routing Engine switchover (GRES)
Operating system
Junos OS
Traffic monitoring
sFlow
Quality-of-service (QoS) queues/port
8
MAC addresses
1,000,000
Jumbo frames
9192 bytes
IPv4 unicast/multicast routes
256,000
IPv6 unicast/multicast routes
256,000
Number of VLANs
32,000
ARP entries
256,000

Field-Proven Juniper Technology

Field-proven Juniper technology—including high-performance ASICs, a cloud-grade architecture, and the Junos OS—enables EX Series switches to provide always-on reliability for every application.


Security Risk Management

Security risk management integrates network access control (NAC) capabilities to help EX Series switches dynamically deliver network protection, guest access, and identity-based quality of service (QoS).


Wire-Speed Performance

Wire-speed performance with high densities of 1GbE, 10GbE, 40GbE, and 100GbE ports dramatically simplifies network topologies and operations.


Eight QoS Queues

Eight QoS queues per switch port ensure proper prioritization of voice, video, and multiple levels of data traffic, with room to converge other networks, such as building automation and video security systems.



Innovative Switch Design

Innovative, cost-effective switch design enables new architectures that reduce cost and complexity, while unified management and automation tools consolidate system monitoring.


Standard Link-Layer Security

IEEE 802.11AE MACsec with AES-128 bit encryption provides data confidentiality, integrity, and origin authentication, helping to minimize denial-of-service (DoS) and other threats.

 juniper EX9200 Flexibility and scalability for business agility and growth,Juniper switches 0juniper EX9200 Flexibility and scalability for business agility and growth,Juniper switches 2
