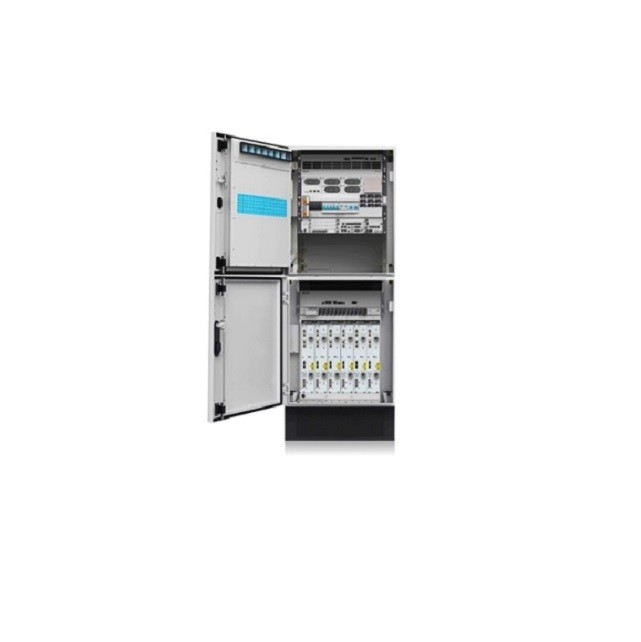

Huawei BTS 3900A Cabinet Outdoor Macro Base Station

 This outdoor macro base station supports both GSM-R and LTE — the ideal solution for railways that want to prepare for evolution to an LTE broadband network. One of the most compact outdoor macro base stations in the industry, the BTS3900A features a large, scalable capacity and multi-mode applications that meet the requirements of long-distance railways.

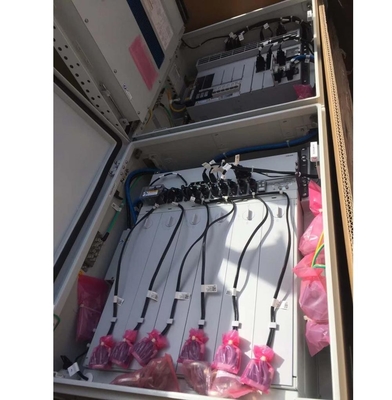

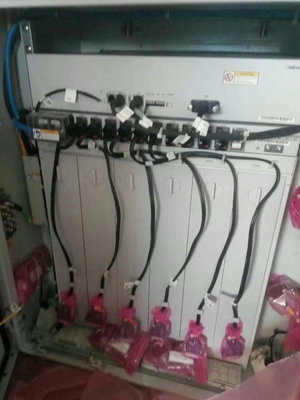

The base station cabinet contains as many as six RF modules. These multicarrier modules support both Huawei’s GSM-R 5.0 and the company’s enterprise LTE (eLTE). Use of this multi-radio base station (and similar indoor base stations) maximizes versatility while minimizing site deployment costs.

BTS3900A includ :RFC(Radio Frequency Cabinet),APM30,BBC(Battery Backup Cabinet) and TMC(Transmission Cabinet).

Typical configuration of the BTS3900A:

APM30+RFC,DRFU(S444)/ GRFU(S121212): 20 minutes backup (24Ah)

TMC+RFC,Provide user equipment space, no backup power (site has DC power supply)

APM30+ RFC +BBC,DRFU(S444)/ GRFU(S121212): 5-hour standby (184Ah)

APM30+ RFC +TMC+BB,DRFU(S444)/ GRFU(S121212): 4-hour standby (184Ah) Description: The power consumption of the transmission cabinet is less than 200W.

Huawei's fourth-generation base station includes: indoor macro base station BTS3900, outdoor macro base station BTS3900A, distributed base station DBS3900

Application Scenarios Flexible combinations of the basic components and auxiliary devices can provide comprehensive solutions that are applicable to specific scenarios of operators, such as indoor centralized installation, outdoor centralized installation, outdoor distributed installation, or co-siting of base stations in different modes.

Macro base station in one or more cabinets

− Indoor model: BTS3900, BTS3900L

− Outdoor model: BTS3900A  Distributed base station: DBS3900

 Specifications

Parameters	Specifications
Working Frequency Bands	880 to 915 MHz and 925 to 960 MHz 873 to 880 MHz and 918 to 925 MHz
Capacity	A single cabinet supports a maximum of: Two BBU3900 baseband units,Six RFUs, 12 GSM-R carriers
Transmit Power	918 MHz to 925 MHz: 2 x 60W 925 MHz to 960 MHz: 2 x 80W
Receiver sensitivity	918 MHz to 925 MHz: Single antenna: -112.5 dBm, Double antennas: -115.5 dBm 925 MHz to 960 MHz: Single antenna: -113.4 dBm, Double antennas: -116.4 dBm
H x W x D	700 mm x 600 mm x 480 mm
Weight	AC cabinet with boards or modules: ≤ 194 kg
Rated Power Supply	-48V DC; voltage range: -38.4V DC to -57V DC
Power Supply Voltage Range	Three-phase 220/346V AC to 240/415V AC; voltage range: 176/304V AC to 290/500V AC
