Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| With Modem Function: | Yes | Standards And Protocols: | Wi-Fi 802.11g |
|---|---|---|---|
| Encryption Type: | WPA2-PSK | Products Status: | New, Stock |
| Type: | Wired | Application: | ENTERPRISE |
| Function: | FireWall, QoS, VPN | LAN Ports: | 16 |
| WAN Ports: | 2 | Port: | Shenzhen |

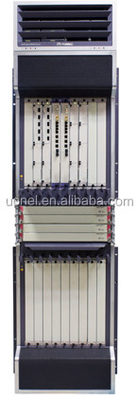

CX600 Metro Services Platform CX600-X16
Physical specifications of the CX600-X16
| Item | Description | ||
|---|---|---|---|
| Dimensions (H x W x D) | 1420 mm (32U) x 442 mm x 650 mm (55.91 in. x 17.40 in. x 25.59 in.) (chassis main body dimensions) 1420 mm (32U) x 442 mm x 770 mm (55.91 in. x 17.40 in. x 30.31 in.) (chassis dimensions including the chassis's front and rear assembly and cable racks) | ||
| Installation position | N68E cabinet or a standard 19-inch cabinet or a 23-inch rack that complies with the North American standard | ||
| Weight | Empty chassis | 69.6 kg (153.47 lb) | |
| Full configuration (maximal) | 279 kg (615.20 lb) | ||
| Integrated chassis | 94.4 kg (208.15 1b) | ||
| Typical power consumption | 6210 W | ||
| Heat dissipation | 20147.9 BTU/hour | ||
| DC input voltage | Rated voltage | -48 V DC / -60 V DC | |
| Maximum voltage range | -38.4 V DC to -72 V DC | ||
| AC input voltage | Rated voltage | 200 V AC to 240 V AC(220V) | |
| Maximum voltage range | 180 V AC to 264 V AC | ||
| System reliability | MTBF (year) | 21.66 | |
| MTTR (hour) | 0.5 | ||
| Ambient temperature | Long-term | 0°C to 45°C (32°F to 113°F) | |
| Short-term | -5°C to 55°C (23°F to 131°F) | ||
| Remarks | Limit of the temperature change rate: 30°C (86 °F)/hour | ||
| Storage temperature | -40°C to 70°C (-40°F to 158°F) | ||
| Relative humidity | Long-term | 5% RH to 85% RH, no coagulation | |
| Short-term | 5% RH to 95% RH, no coagulation | ||
| Storage humidity | 5% RH to 95% RH, no coagulation | ||
| Long-term altitude | ≤ 4000 m (13123.2 ft). If the altitude is between 1800 meters (5905.44 ft) and 4000 meters, the maximum operating temperature of the device must decrease by 1°C for every 220 meters (721.776 ft) increase in altitude. | ||
| Storage altitude | Lower than 5000 m (16404 ft) | ||
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
| Delivery Options | Estimated Delivery Time |
|---|---|
 DHL | 3-5 business days |
| Fedex | 3-5 business days |
| By Sea | 10-20 business days |
Notice:
Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:
Deliver to port:
Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.
Deliver to door:
Uonel will quote all destination charge prior once we have confirmed order.
Uonel is responsible for transporting goods to door after you have made the payment.
100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices
100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.
Free Technical Support:
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed product: 1 Year
The Support Contacts:
If your products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million products in stock.
Most of our technical engineers had work exprience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
Contact Person: Mr. Leo yang
Tel: +86 15684227158
