Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | CE-SFU08G1 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Application: | Enterprise Networking | Products Status: | Stock |
|---|---|---|---|
| Port: | Shenzhen |

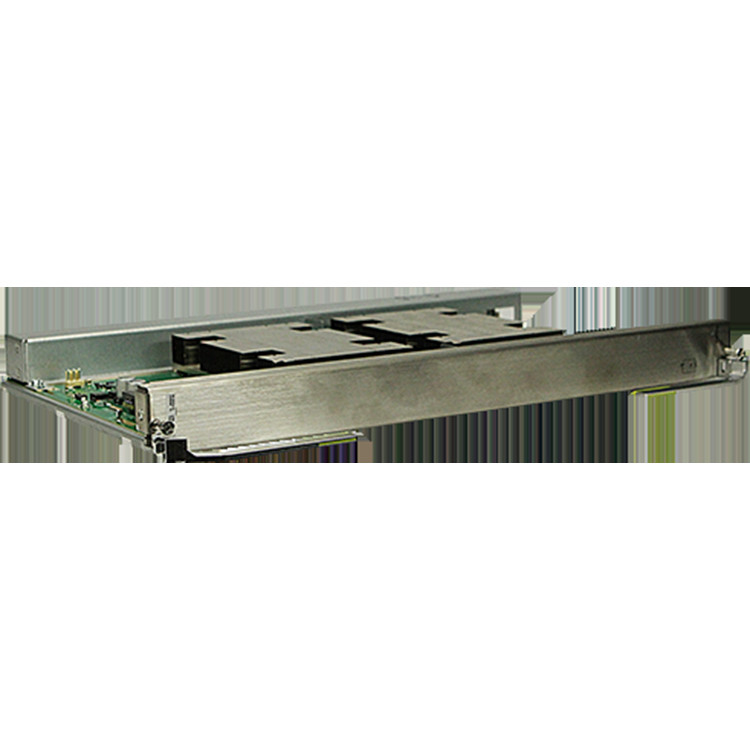

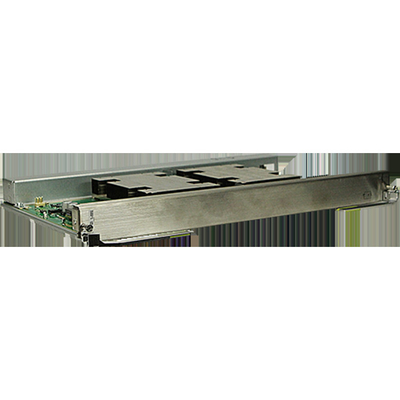

03025RXJ CE-SFU08G1 CE12808 Switch Fabric Unit G1
Physical specifications of the CX600-X8
| Item | Specification | |
|---|---|---|
| Dimensions (H x W x D) | 620 mm (14U) x 442 mm x 650 mm (24.41 in. x 17.40 in. x 25.59 in.) (chassis main body dimensions) 620 mm (14U) x 442 mm x 770 mm (24.41 in. x 17.40 in. x 30.31 in.) (chassis dimensions including the chassis's front and rear assembly and cable racks) | |
| Installation position | N68E cabinet or a standard 19-inch cabinet or a 23-inch rack that complies with the North American standard | |
| Weight | Empty chassis | 25.8 kg (56.89 lb) |
| Full configuration (maximal) | 136 kg (299.88 lb) | |
| Integrated chassis | 43.2kg (95.26 1b) | |
| Typical power consumption | 3220W | |
| Heat dissipation | 10447.0 BTU/hour | |
| DC input voltage | Rated voltage | -48 V DC / -60 V DC |
| Maximum voltage range | -38.4 V DC to -72 V DC | |
| AC input voltage | Rated voltage | 200 V AC to 240 V AC(220V) |
| Maximum voltage range | 180 V AC to 264 V AC | |
| System reliability | MTBF (year) | 21.91 |
| MTTR (hour) | 0.5 | |
| Ambient temperature | Long-term | 0°C to 45°C (32°F to 113°F) |
| Short-term | -5°C to 55°C (23°F to 131°F) | |
| Remarks | Limit of the temperature change rate: 30°C (86°F)/hour | |
| Storage temperature | -40°C to 70°C (-40°F to 158°F) | |
| Relative humidity | Long-term | 5% RH to 85% RH, no coagulation |
| Short-term | 5% RH to 95% RH, no coagulation | |
| Storage humidity | 5% RH to 95RH, no coagulation | |
| Long-term altitude | ≤ 4000 m (13123.2 ft). If the altitude is between 1800 meters (5905.44 ft) and 4000 meters, the maximum operating temperature of the device must decrease by 1°C for every 220 meters (721.776 ft) increase in altitude. | |
| Storage altitude | Lower than 5000 m (16404 ft) | |
System configuration list of the CX600-X8
| Item | Typical Configuration | Remarks |
|---|---|---|
| Processing unit | Main frequency:1.5 GHz(SRUA5) Main frequency:2 GHz(SRUB5) Main frequency:1.5 GHz(SRUA7) | - |
| SDRAM | 4 GB(SRUA5) 16 GB(SRUB5) 4 GB(SRUA7) | Two 2GB memory modules(SRUA5) Two 8GB memory modules(SRUB5) Two 2GB memory modules(SRUA7) |
| CF card | 4 GB(SRUA5) 8 GB(SRUB5) 4 GB(SRUA7) | Two 2 GB CF cards(SRUA5) One CF card(SRUB5) Two 2 GB CF cards(SRUA7) |
| Switching capacity | 7.08 Tbit/s (LPUF/I-240) | - |
| Number of LPU slots | 8 | - |
| Number of SRU slots | 2 | - |
| Number of SFU slots | 1 | - |
